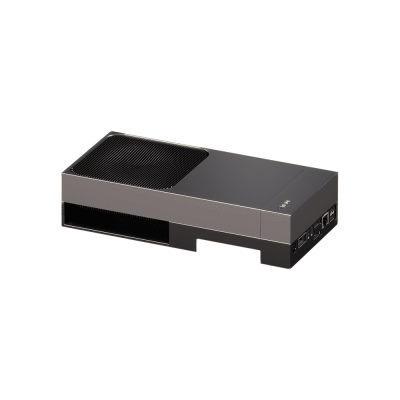

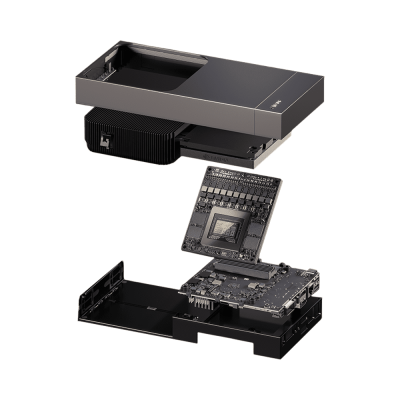

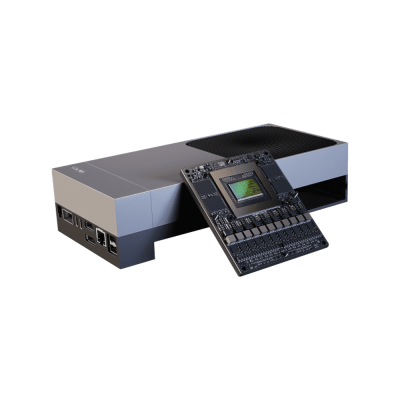

NVIDIA Jetson AGX Thor Developer Kit

AI Performance : 2070 TFLOPS (FP4—sparse)
GPU : 2560-core NVIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores
CPU :
- 14-core Arm® Neoverse®-V3AE 64-bit
- CPU 64 KB I-Cache, 64 KB D-Cache
- 1 MB L2 cache per core
- 16 MB shared system L3 cache
Memory : 128 GB 256-bit LPDDR5X 273 GB/s
Storage : 1 TB NVMe M.2 Key M slot
Compatible Jetpack Version : JetPack 7.x.x
Video Encode : 6x 4Kp60 (H.265)
- 12x 4Kp30 (H.265)
- 24x 1080p60 (H.265)
- 50x 1080p30 (H.265)
- 48x 1080p30 (H.264)
- 6x 4Kp60 (H.264)
Video Decode :
- 4x 8Kp30 (H.265)
- 10x 4Kp60 (H.265)
- 22x 4Kp30 (H.265)
- 46x 1080p60 (H.265)
- 92x 1080p30 (H.265)
- 82x 1080p30 (H.264)
- 4x 4Kp60 (H.264)
Power : 40 W–130 W
Reference Carrier Board :
Camera : HSB camera via QSFP slot
USB camera
PCIe :
- M.2 Key M slot with x4 PCIe Gen5 (populated with 1 TB NVMe)
- M.2 Key E slot with x1 PCIe Gen5 (populated with WiFi and Bluetooth module)
USB :
- 2x USB-A 3.2
- 2x USB-C 3.1
Networking :
- 1x 5 GBe RJ45 connector
- 1x QSFP28 (4x 25 GbE)
Display : 1x HDMI 2.0b
- 1x DisplayPort 1.4a
Other I/O :
- 2x 13-pin CAN header
- 2x 6-pin automation header
- 2x 5-pin JTAG connector
- 1x 4-pin fan connector—12 V, PWM, and Tach
- 2x 5-pin audio panel header
- 2-pin RTC backup battery connector Microfit power jack
- Power, force recovery, and reset buttons
Mechanical : 243.19 mm x 112.40 mm x 56.88 mm (Height includes feet, carrier board, module, and thermal solution)
Warranthy : 1 Year
