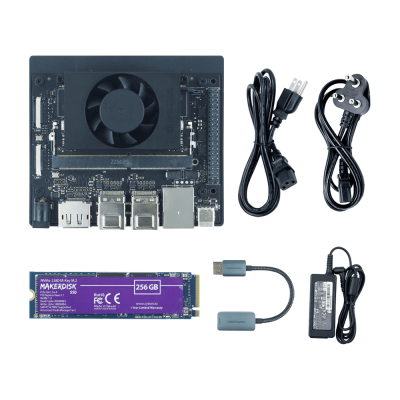

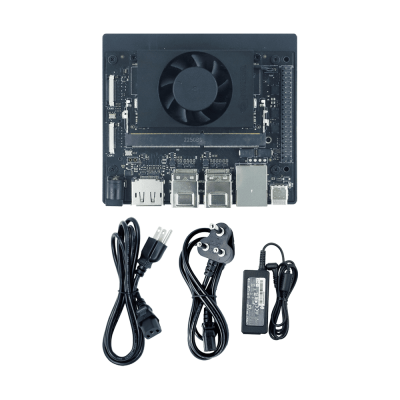

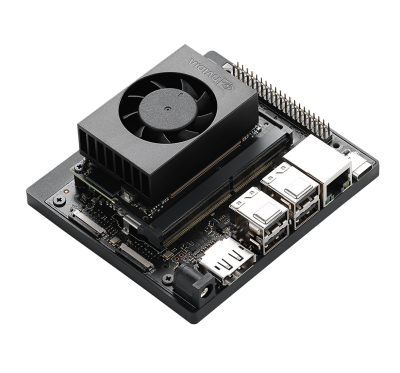

NVIDIA Jetson Orin Nano Super Dev Kit

NVIDIA Jetson Orin Nano Super Developer Kit Module

GPU : NVIDIA AmpereTM architecture with1024 x NVIDIA CUDA Cores
32 x Tensor Cores
CPU : 6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5 MB L2 + 4 MB L3
Memory : 8GB, 128-bit, LPDDR5, 102GB/s or 68GB/s (Depending on the power mode)
Storage : External through microSD slot
External NVMe SSD through M.2 Key-M
Power : 7W to 25W


NVIDIA Jetson Orin Nano Super Developer Kit Carrier Board

Camera : 2 x MIPI CSI-2 22-pin Camera Connectors
M.2 Key-M :
- x4 PCIe Gen3
- x2 PCIe Gen3
M.2 Key-E : PCIe (x1), USB 2.0, UART, I2S, and I2CPre-installed with Wireless Card, IEEE 802.11ac and Bluetooth 5.0
USB :
- 4 x Type A USB 3.2 Gen2
- 1 x Type C (for Debug and Device Mode only, not for power)
Networking : 1 x Gigabit Ethernet RJ45 Connector
Multimedia Output : Display Port 1.2 (+MST)
microSD slot : UHS-1 cards up to SDR104 mode
Others :
- 40-pin Expansion Header (UART, SPI, I2S, I2C, GPIO)
- 12-pin button header
- 4-pin fan header
- DC power jack
- Compatible with Jetson Orin NX module
Dimensions : 100 mm x 79 mm x 21 mm (Height includes feet, carrier board, module, and thermal solution)
Warranthy : 1 Year
