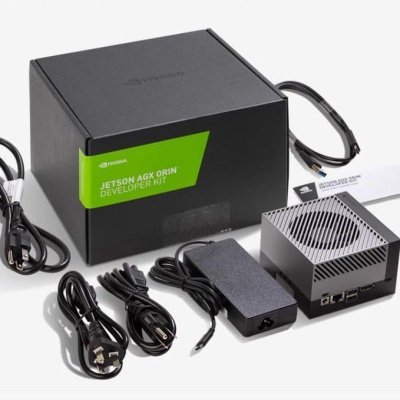

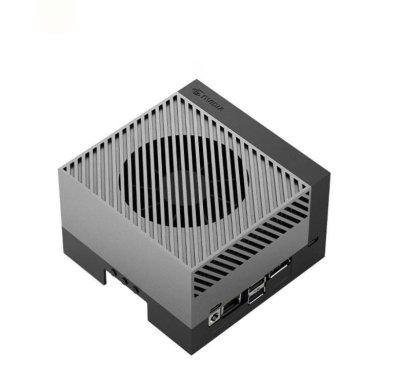

Nvidia Jetson AGX Orin Dev Kit

Jetson AGX Orin Module :
GPU : NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 Tensor cores
CPU : 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
DL Accelerator : 2x NVDLA v2.0
Vision Accelerator : PVA v2.0
Memory :
- 64GB 256-bit LPDDR5
- 204.8 GB/s
Storage : 64GB eMMC 5.1
Video Encode : 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265)
Video DecodeL 1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60 | 24x 1080p30 (H.265)
Carrier Board:Camera : 16 lane MIPI CSI-2 connector
PCIe : x16 PCIe slot supporting x8 PCIe Gen4
RJ45 : Up to 10 GbE
M.2 Key M : x4 PCIe Gen 4
M.2 Key E : x1 PCIe Gen 4, USB 2.0, UART, I2S
USB :
- 2 x USB 3.2 Gen2 Type-C with USB-PD support
- 2 x USB 3.2 Gen2 Type-A
- 2 x USB 3.2 Gen1 Type-A
- 1 x USB 2.0 Micro-B
DisplayPort : DisplayPort 1.4a (+MST)
microSD slot : UHS-1 cards up to SDR104 mode
Other :
- 40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC)
- 12-pin automation header
- 10-pin audio panel header
- 10-pin JTAG header
- 4-pin fan header
- 2-pin RTC battery backup connector
- DC power jack
Power, Force Recovery and Reset buttons
Dimensions : 110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution)
Warranthy : 1 Year
