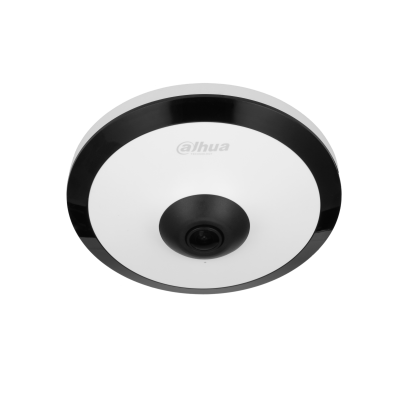

CCTV Dahua 5MP Panoramic Network IR Fisheye

​

5MP Panoramic Fisheye Network Camera with 360° Coverage and IR Night Vision

The Dahua 5MP Panoramic Network IR Fisheye is a professional network surveillance camera designed to provide complete 360-degree coverage with a single device. Featuring a 5MP image sensor, fisheye lens, infrared night vision, and advanced dewarping technology, it delivers comprehensive monitoring for commercial, educational, hospitality, and public environments.

Key Features of Dahua 5MP Panoramic Network IR Fisheye

​

5MP High-Resolution Imaging

Captures detailed video at up to 2592 × 1944 resolution, providing clear identification of people and activities across wide areas.

360° Panoramic Coverage

The fisheye lens delivers full 360° coverage when ceiling-mounted or 180° panoramic coverage when wall-mounted, reducing blind spots and camera deployment costs.

Advanced Dewarping Technology

Supports multiple viewing modes including Panorama, Double Panorama, Quad View, and Electronic PTZ (E-PTZ) for flexible monitoring.

Infrared Night Vision

Built-in IR illumination enables reliable surveillance in low-light and nighttime environments.

Smart Video Compression

Supports Smart H.265+ and Smart H.264+ compression technologies to reduce bandwidth and storage requirements.

Intelligent Video Analytics

Includes motion detection, intrusion detection, and tamper detection functions to enhance security monitoring capabilities.

PoE Support

Power over Ethernet (PoE) support simplifies installation by transmitting power and data through a single network cable.

Technical Specifications

​

• Camera Type : Panoramic Fisheye Network Camera
• Image Sensor : 1/2.7" Progressive Scan CMOS
• Resolution : 5MP (2592 × 1944)
• Lens : Fixed Fisheye Lens
• Viewing Angle :
  • 180° Wall Mount
  • 360° Ceiling Mount
• IR Distance : Up to 10 m
• Video Compression :
  • Smart H.265+
  • H.265
  • Smart H.264+
  • H.264
• Image Features :
  • Dewarping
  • Digital WDR
  • BLC
  • HLC
  • 3D DNR
• Smart Functions :
  • Motion Detection
  • Intrusion Detection
  • Tamper Detection
• Storage :
  • MicroSD Card Support
• Network Interface :
  • RJ45 10/100 Mbps Ethernet
• Power Supply :
  • 12V DC
  • PoE (802.3af)
• Protection Rating :
  • IP67 (Model Dependent)
• Operating Temperature :
  • -30°C to 60°C

Ideal Applications

​

• Shopping Malls
• Retail Stores
• Office Buildings
• Schools and Universities
• Hotels
• Hospitals
• Meeting Rooms
• Warehouses
• Public Areas

Why Choose Dahua 5MP Panoramic Network IR Fisheye

​

The Dahua 5MP Panoramic Network IR Fisheye provides complete 360-degree surveillance coverage with a single camera. Combining high-resolution imaging, dewarping technology, IR night vision, and intelligent analytics, it is an excellent solution for organizations seeking efficient, cost-effective, and comprehensive security monitoring.
