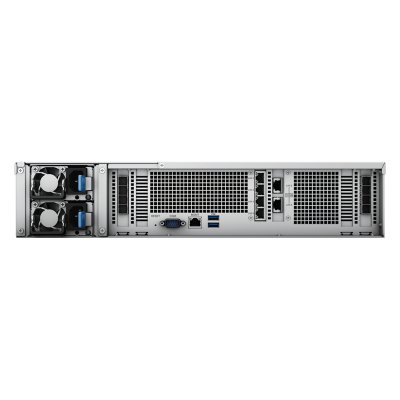

Storage NAS Synology RackStation SA6400 12-BAY 32GB (KIT-SNG-SA6400#1)

​

Enterprise 12-Bay NAS with AMD EPYC 12-Core Processor, 32GB ECC Memory and Petabyte-Scale Expansion

The Synology RackStation SA6400 is a high-performance 2U rackmount NAS designed for enterprise storage, virtualization, backup repositories, media production, and data center environments. Powered by an AMD EPYC 7272 12-core processor and 32GB ECC memory, it delivers exceptional throughput, scalability, and reliability while supporting storage expansion beyond 1.9PB.

Key Features of Synology RackStation SA6400

​

AMD EPYC 7272 Enterprise Processor

Powered by an AMD EPYC 7272 processor featuring 12 cores and 24 threads with a base frequency of 2.9GHz and turbo boost up to 3.2GHz for demanding enterprise workloads.

32GB ECC Memory Expandable to 1TB

Includes 32GB DDR4 ECC RDIMM memory and supports expansion up to 1TB, ensuring stability and scalability for virtualization and large-scale storage applications.

Massive Storage Scalability

Supports 12 drive bays and can scale up to 108 drive bays with RX1223RP expansion units, providing more than 1.9PB of total storage capacity.

High-Speed Data Throughput

Delivers over 6,500 MB/s sequential read and 4,000 MB/s sequential write performance, making it ideal for data-intensive applications and media workflows.

Built-In High-Speed Networking

Features dual 10GbE RJ45 ports and four 1GbE ports, with support for optional 25GbE, 40GbE, and Fibre Channel expansion via PCIe slots.

Redundant Power Supply Design

Equipped with redundant power supplies to maximize uptime and ensure continuous operation in enterprise environments.

Comprehensive Data Protection

Supports Snapshot Replication, Hyper Backup, Synology High Availability, and Active Backup Suite to safeguard critical business data.

Technical Specifications

​

• Model : KIT-SNG-SA6400#1
• Product Name : Synology RackStation SA6400
• Form Factor : 2U Rackmount
• Processor :
  • AMD EPYC 7272
  • 12 Cores / 24 Threads
  • 2.9GHz Base Frequency
  • Up to 3.2GHz Turbo
• Memory :
  • 32GB DDR4 ECC RDIMM
• Maximum Memory :
  • Up to 1TB
• Drive Bays :
  • 12 x 3.5"/2.5" SATA/SAS HDD or SSD
• Maximum Expansion :
  • Up to 108 Bays
  • Up to 1.9PB Capacity
• Network Ports :
  • 2 x 10GbE RJ45
  • 4 x 1GbE RJ45
  • 1 x Dedicated Management Port
• Expansion Slots :
  • 2 x PCIe 3.0 x8
• USB Ports :
  • 2 x USB 3.2 Gen1
• RAID Support :
  • RAID 0, 1, 5, 6, 10, RAID F1, JBOD
• Power Supply :
  • Dual Redundant PSU
• Operating System :
  • Synology DSM
• Warranty :
  • 5-Year Limited Warranty

Ideal Applications

​

• Enterprise Storage
• Data Centers
• VMware & Hyper-V Environments
• Virtualization Infrastructure
• Backup Repositories
• Database Storage
• Media Production Workflows
• Disaster Recovery
• File Archiving
• Mission-Critical Applications

Why Choose Synology RackStation SA6400

​

The Synology RackStation SA6400 combines enterprise-class AMD EPYC processing, ECC memory, high-speed networking, and petabyte-scale storage expansion in a reliable 2U platform. It is an ideal solution for organizations that require scalable, high-performance, and highly available storage infrastructure for modern business operations.
