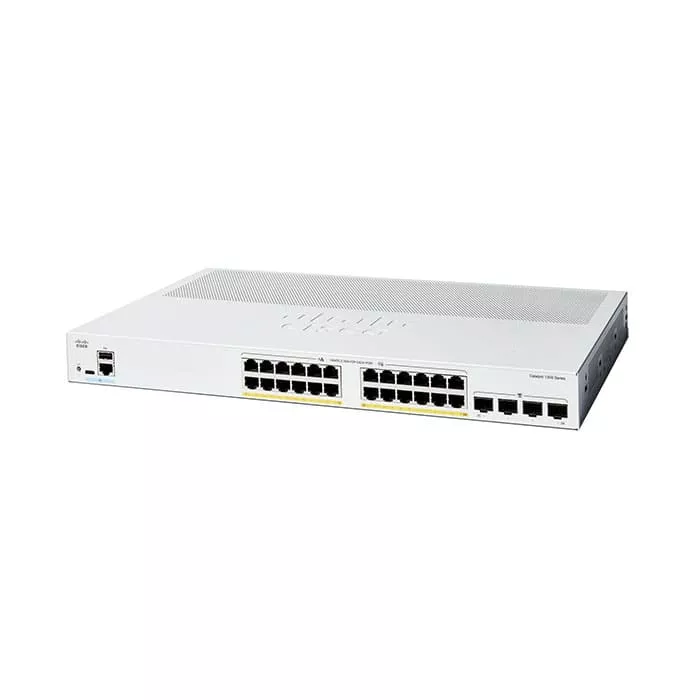

Cisco Catalyst 1300 24-port Full PoE+ Switch with 4x10G SFP+ (C1300-24FP-4X)

​

Layer 3 Managed Switch with 24 Gigabit PoE+ Ports and 4 x 10G SFP+ Uplinks for Enterprise Networks

The Cisco Catalyst C1300-24FP-4X is a Layer 3 managed switch designed for organizations that require high-performance, secure, and scalable networking. It features 24 Gigabit Ethernet PoE+ ports, a 370W PoE power budget, and four 10 Gigabit SFP+ uplink ports, making it ideal for wireless access points, IP surveillance cameras, VoIP phones, and enterprise network deployments.

Key Features of Cisco Catalyst C1300-24FP-4X

​

24 Full PoE+ Gigabit Ports

Provides 24 Gigabit Ethernet ports with IEEE 802.3af/at PoE+ support for powering wireless access points, IP cameras, VoIP phones, and IoT devices.

370W PoE Power Budget

Supports up to 370W of total PoE power, allowing multiple powered devices to operate simultaneously without additional power adapters.

4 × 10G SFP+ Uplink Ports

Includes four 10 Gigabit SFP+ uplink ports for high-speed fiber connectivity to aggregation switches, core networks, and data center environments.

128 Gbps Switching Capacity

Delivers up to 128 Gbps switching capacity and 95.23 Mpps forwarding performance for efficient and reliable network traffic handling.

Advanced Layer 3 Features

Supports static routing, dynamic routing, VLANs, ACLs, QoS, and advanced Layer 3 network management capabilities.

Cisco Business Dashboard Management

Supports Web GUI, Cisco Business Dashboard, and mobile application management for simplified deployment and monitoring.

Enterprise Security

Includes 802.1X authentication, ACLs, port security, DHCP snooping, and IPv6 protection for business-critical network security.

Stackable Architecture

Supports switch stacking within the Cisco Catalyst 1300 Series, providing scalability and simplified network administration.

Rack-Mount Design

Built for rack-mounted deployment in enterprise server rooms and data center environments.

Technical Specifications

​

• Model: C1300-24FP-4X
• Ports: 24 × Gigabit Ethernet PoE+
• Uplink Ports: 4 × 10G SFP+
• PoE Budget: 370W
• Switching Capacity: 128 Gbps
• Forwarding Rate: 95.23 Mpps
• CPU: ARM Dual-Core 1.4 GHz
• Memory: 1GB DDR4
• Packet Buffer: 1.5 MB
• MAC Address Table: 16K
• Layer: Layer 3 Managed Switch
• Management: Web GUI, Cisco Business Dashboard, Mobile App
• Form Factor: Rack Mount
• Dimensions: 445 × 345 × 44 mm
• Weight: 4.6 kg

Ideal Applications

​

• Enterprise Networks
• Corporate Offices
• Wi-Fi 6 / Wi-Fi 7 Deployments
• IP Surveillance Systems
• VoIP Infrastructure
• Hospitality Networks
• Educational Institutions
• Healthcare Networks
• Data Center Edge
• Branch Offices

Why Choose Cisco Catalyst C1300-24FP-4X

​

The Cisco Catalyst C1300-24FP-4X combines enterprise-grade Layer 3 switching, 24 full PoE+ ports, four high-speed 10G SFP+ uplinks, and a powerful 370W PoE budget into a single platform. It is an excellent choice for organizations seeking reliable, secure, and future-ready network infrastructure backed by Cisco technology.
