Omada Access Point AC1200 Indoor/Outdoor Dual-Band Wi-Fi (EAP225-Outdoor)

​

Enterprise AC1200 Indoor/Outdoor Dual-Band Access Point with IP65 Weatherproof Design

TheOmada EAP225-Outdooris an enterprise-gradeAC1200 Dual-Band Wi-Fi 5 Access Pointdesigned for both indoor and outdoor deployments. Featuring anIP65 weatherproof enclosure,6 kV lightning protection,1 × Gigabit Ethernet port,802.3af/at PoE,24V Passive PoE,MU-MIMO,Omada Mesh, and centralizedOmada SDNmanagement, it delivers reliable, long-range wireless connectivity for demanding business environments.

Key Features of Omada EAP225-Outdoor

​

AC1200 Dual-Band Wi-Fi Performance

Delivers combined wireless speeds of up to1.2 Gbps

• 5 GHz:Up to867 Mbps
• 2.4 GHz:Up to300 Mbps

Ideal for HD video streaming, cloud applications, video conferencing, and multiple connected devices.

Advanced Wireless Technologies

Supports advanced wireless features including:

• MU-MIMO (Wave 2)
• Beamforming
• Band Steering
• Airtime Fairness
• Omada Mesh
• Seamless Roaming
• Captive Portal

These technologies improve network efficiency, expand wireless coverage, and provide stable performance in high-density environments.

Indoor & Outdoor Deployment

Features anIP65 weatherproof enclosurewith:

• 6 kV Lightning Protection
• 15 kV ESD Protection

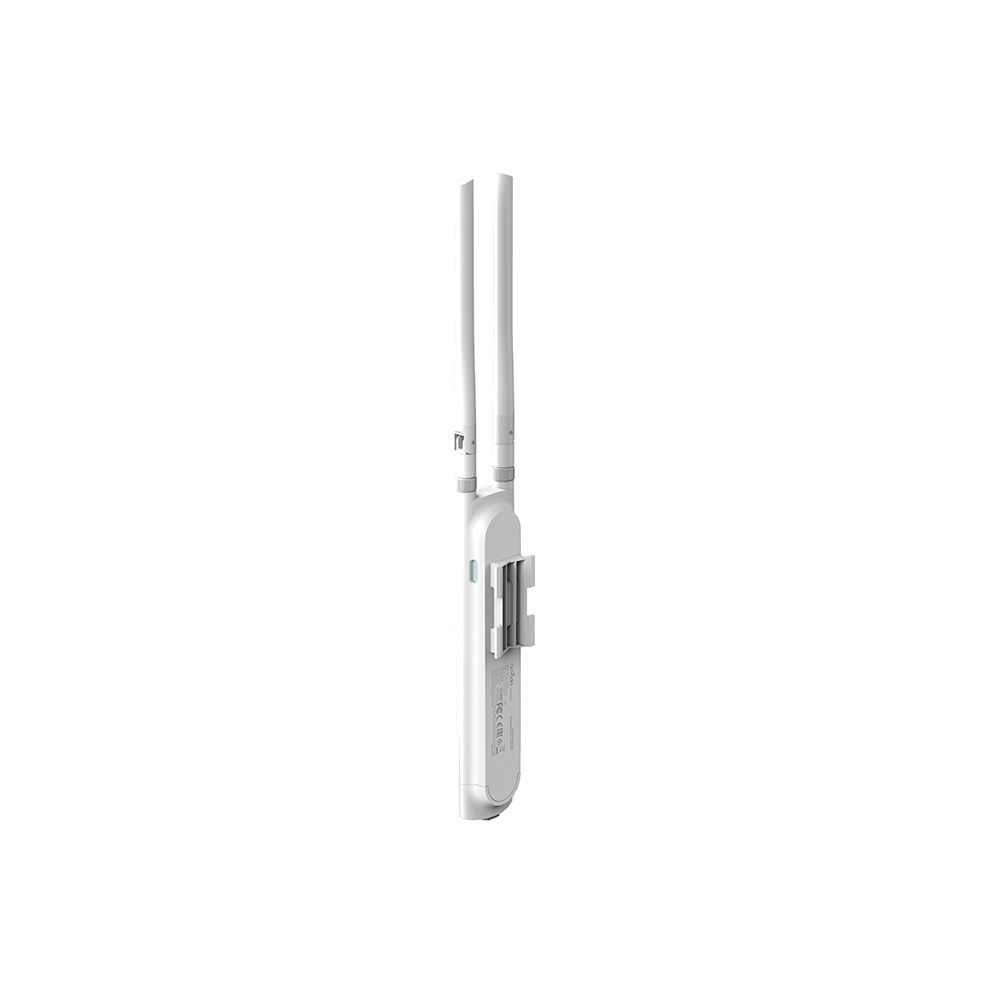

• Wall Mount and Pole Mount support

Designed for reliable operation in harsh outdoor environments.

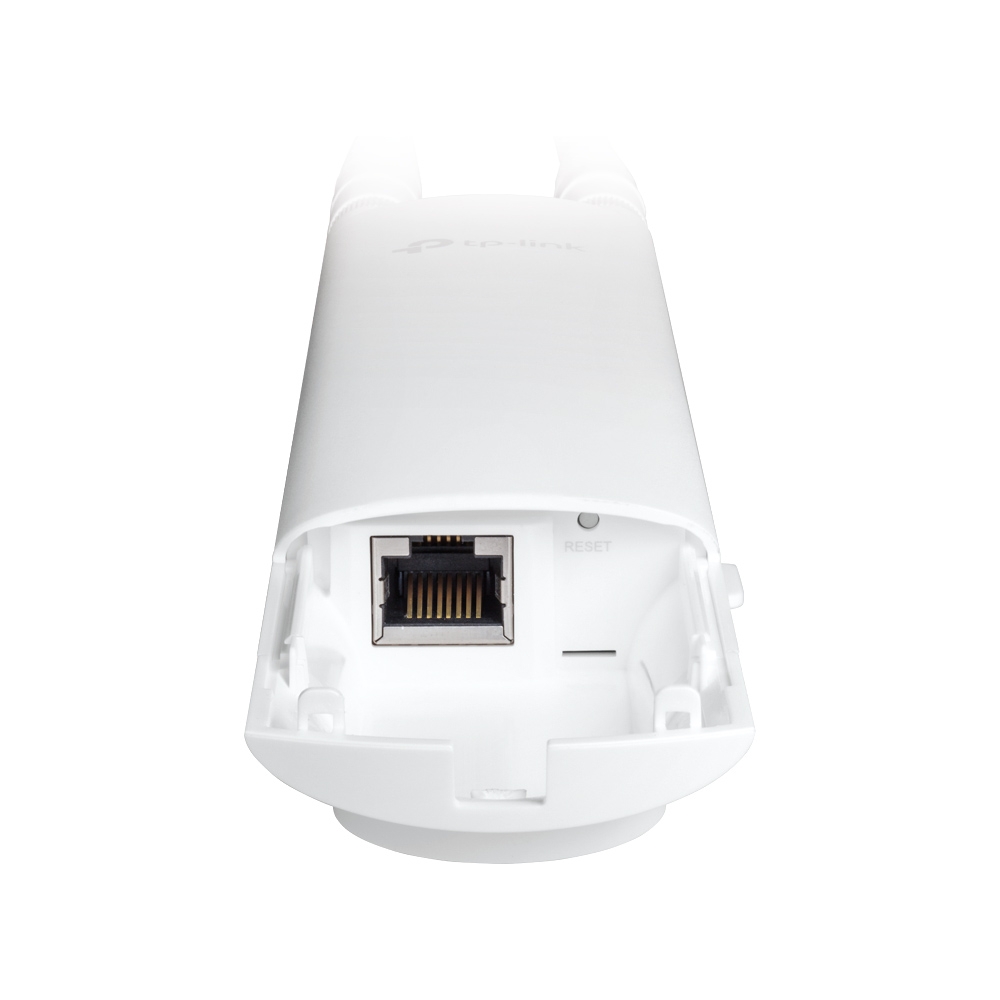

Gigabit Ethernet Port

Features1 × Gigabit RJ45 Ethernet portwith support for:

• IEEE 802.3af/at PoE
• 24V Passive PoE

Enabling simplified deployment through a single Ethernet cable.

PoE Support

Supports:

• IEEE 802.3af/at PoE
• 24V Passive PoE
• Passive PoE Adapter Included

Provides flexible installation options for indoor and outdoor deployments.

Long-Range Wireless Coverage

• Up to300 m (5 GHz)outdoor coverage
• Up to200 m (2.4 GHz)outdoor coverage
• High-gain detachable omnidirectional antennas

Ideal for hotels, resorts, campuses, parks, warehouses, parking areas, and outdoor venues.

Centralized Management with Omada SDN

Supports centralized management through:

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC200 / OC300)
• Omada Software Controller
• Omada App
• Web Management Interface

Includes Cloud Management and Zero-Touch Provisioning for simplified deployment and maintenance.

Enterprise-Class Security

Supports:

• WPA/WPA2-Personal
• WPA/WPA2-Enterprise
• Captive Portal
• 802.1X Authentication
• VLAN
• Wireless Client Isolation
• MAC Address Filtering
• Access Control

Provides enterprise-grade wireless security for modern business networks.

Ideal Applications

​

• Hotels & Resorts
• Schools & Universities
• Industrial Facilities
• Parks
• Stadiums
• Parking Areas
• Warehouses
• Outdoor Event Venues
• Smart Campuses
• Offices

Why Choose Omada EAP225-Outdoor

​

TheOmada EAP225-OutdoorcombinesAC1200 Wi-Fi 5performance,IP65 weatherproof protection,6 kV lightning protection,802.3af/at PoE,Omada Mesh, and centralizedOmada SDNmanagement. It is an ideal solution for organizations seeking reliable, long-range wireless networking with seamless indoor and outdoor coverage.
