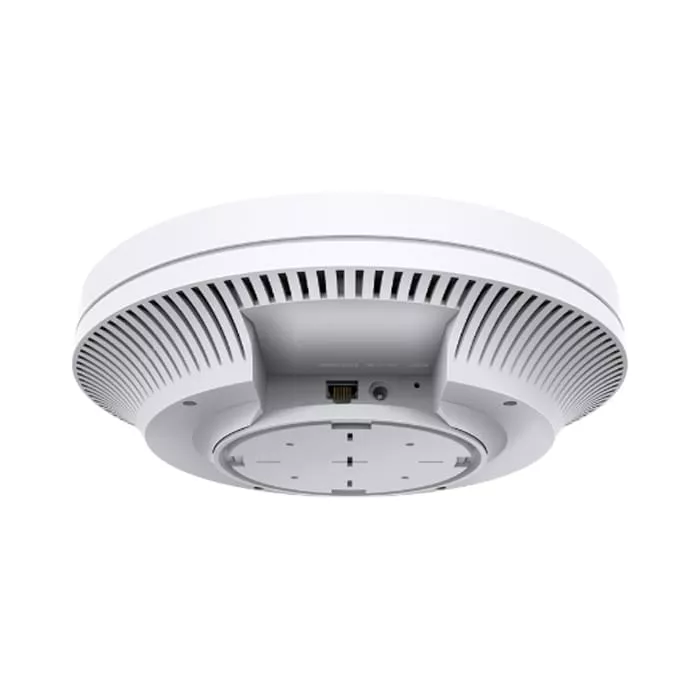

Omada Access Point AX1800 Ceiling Mount Dual-Band Wi-Fi 6 (EAP610)

​

Enterprise Ceiling Mount Wi-Fi 6 Access Point with AX1800 Dual-Band and Gigabit Connectivity

TheOmada EAP610is an enterprise-gradeAX1800 Dual-Band Wi-Fi 6 Access Pointdesigned for ceiling or wall mounting. It is ideal for offices, hotels, schools, retail stores, restaurants, and other high-density environments. Featuring aGigabit Ethernet port,802.3at PoE+,OFDMA,MU-MIMO, and centralized management throughOmada SDN, it delivers fast, reliable, and scalable wireless networking.

Key Features of Omada EAP610

​

AX1800 Dual-Band Wi-Fi 6 Performance

Delivers combined wireless speeds of up to1.8 Gbps

• 5 GHz:Up to1,201 Mbps
• 2.4 GHz:Up to574 Mbps

Ideal for 4K streaming, cloud applications, online meetings, and multiple connected devices.

Advanced Wi-Fi 6 Technologies

Supports the latest Wi-Fi 6 features, including:

• OFDMA
• MU-MIMO
• 1024-QAM
• Beamforming
• Band Steering
• Airtime Fairness
• Load Balance
• BSS Coloring

These technologies improve network efficiency, increase capacity, and reduce latency in high-density environments.

Gigabit Ethernet Port

Features1 × Gigabit RJ45 port, providing reliable wired connectivity while supporting PoE for simplified installation.

PoE+ Support

Supports:

• IEEE 802.3at PoE+
• 48V Passive PoE
• 12V DC Power Input (Power Adapter Included)

Offering flexible deployment options for various installation scenarios.

High Client Capacity

• Supports250+ concurrent clients
• Optimized for high-density wireless environments

Ideal for offices, hotels, classrooms, conference rooms, restaurants, and co-working spaces.

Centralized Management with Omada SDN

Supports centralized management via:

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC200 / OC300)
• Omada Software Controller
• Omada App
• Web Management Interface

Simplifies deployment, monitoring, and configuration of multiple access points with cloud-based management and Zero-Touch Provisioning.

Enterprise-Class Security

Supports advanced security features, including:

• WPA3 Personal / Enterprise
• Captive Portal
• VLAN
• Rogue AP Detection
• Access Control
• Wireless Client Isolation
• 802.1X Authentication
• MAC Address Filtering

Provides secure wireless access and enterprise-grade network protection.

Omada Mesh & Seamless Roaming

SupportsOmada MeshandSeamless Roaming (802.11k/v/r), allowing users to move seamlessly between access points without interruption.

Ideal Applications

​

• Enterprise Offices
• Hotels & Resorts
• Schools & Universities
• Retail Stores
• Restaurants & Cafés
• Co-working Spaces
• Conference Rooms
• Smart Buildings
• Enterprise Wi-Fi Networks
• High-Density Wireless Deployments

Why Choose Omada EAP610

​

TheOmada EAP610combinesAX1800 Wi-Fi 6performance with aGigabit Ethernet uplink,PoE+support, advanced Wi-Fi 6 technologies, enterprise-grade security, and centralizedOmada SDNmanagement. It is an ideal solution for organizations seeking a reliable, scalable, and cost-effective wireless network for modern business environments.
