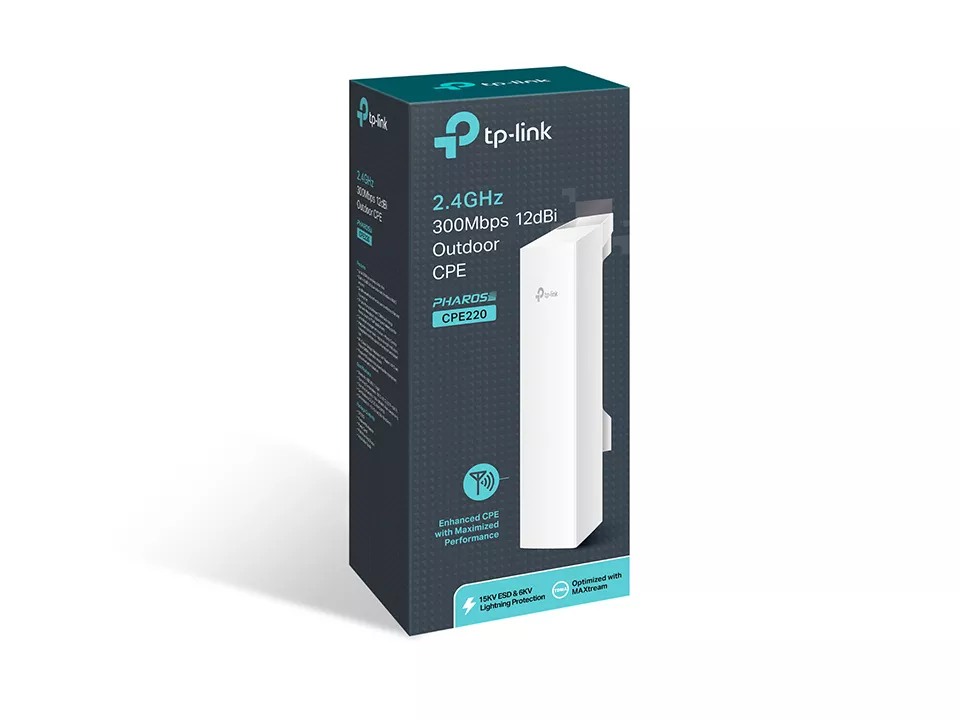

Omada Outdoor CPE Pharos 2.4GHz 300Mbps 12dBi 2-Port Fast Ethernet (CPE220)

​

Long-Range Outdoor Wireless CPE with 300 Mbps Performance and 12 dBi Directional Antenna

TheTP-Link Pharos CPE220is a professionalOutdoor Customer Premises Equipment (CPE)designed forPoint-to-Point (PtP)andPoint-to-Multipoint (PtMP)wireless deployments. Operating on the2.4 GHzband withIEEE 802.11b/g/ntechnology, it delivers wireless speeds of up to300 Mbpsand features a12 dBi dual-polarized directional 2×2 MIMO antennawith2 × 10/100 Mbps Fast Ethernet ports. Supporting wireless transmission of over13 kmunder optimal conditions and powered byPharos MAXtream TDMAtechnology, it is ideal for long-range wireless backhaul, IP surveillance, industrial networking, and outdoor connectivity.

Key Features of TP-Link Pharos CPE220

​

300 Mbps Wireless Performance

SupportsIEEE 802.11b/g/nstandards.

• 2.4 GHz:Up to300 Mbps
• Supports5 / 10 / 20 / 40 MHzchannel widths

Provides reliable wireless connectivity for outdoor networking applications.

12 dBi Directional Antenna

Features:

• 12 dBi dual-polarized directional antenna
• 2×2 MIMO technology
• Pharos MAXtream TDMA
• Wireless transmission over13 kmunder line-of-sight conditions

Optimized for stable long-distance wireless links.

Dual Fast Ethernet Connectivity

Equipped with:

• 2 × 10/100 Mbps Shielded Ethernet Ports
• Passive PoE input on LAN0
• Passive PoE Passthrough on LAN1 (model/version dependent)

Provides flexible wired connectivity for outdoor deployments.

Built for Outdoor Deployment

Features:

• IPX5 Weatherproof Enclosure
• 15 kV ESD Protection
• 6 kV Lightning Protection
• Operating temperature from-40°C to +70°C

Ensures reliable operation in harsh outdoor environments.

Passive PoE Support

Supports:

• 24V Passive PoE
• Cable distance up to60 meters
• Passive PoE Adapter included
• Remote Reset capability

Enables flexible installation where AC power is unavailable.

Pharos Control Management

Supports:

• Pharos Control
• Web Management
• Spectrum Analyzer
• Throughput Monitor
• Speed Test
• Signal Quality Monitoring

Simplifies deployment and maintenance of outdoor wireless networks.

Multiple Operating Modes

Supports:

• Access Point
• Client
• AP Router
• AP Client Router (WISP)

Offers flexible deployment options for various outdoor wireless applications.

Ideal Applications

​

• Building-to-Building Wireless Links
• IP Surveillance (CCTV)
• Industrial Facilities
• Warehouses
• Farms & Agricultural Sites
• Schools & Universities
• Hotels & Resorts
• Long-Range Wireless Backhaul

Why Choose TP-Link Pharos CPE220

​

TheTP-Link Pharos CPE220combines300 Mbps wireless performance, a12 dBi directional MIMO antenna, wireless transmission of over13 km, anddual Fast Ethernet ports. WithPharos MAXtream TDMA,Passive PoE,IPX5 weatherproof protection, and enterprise-grade surge protection, it delivers a reliable and cost-effective solution for professional long-range outdoor wireless networking.
