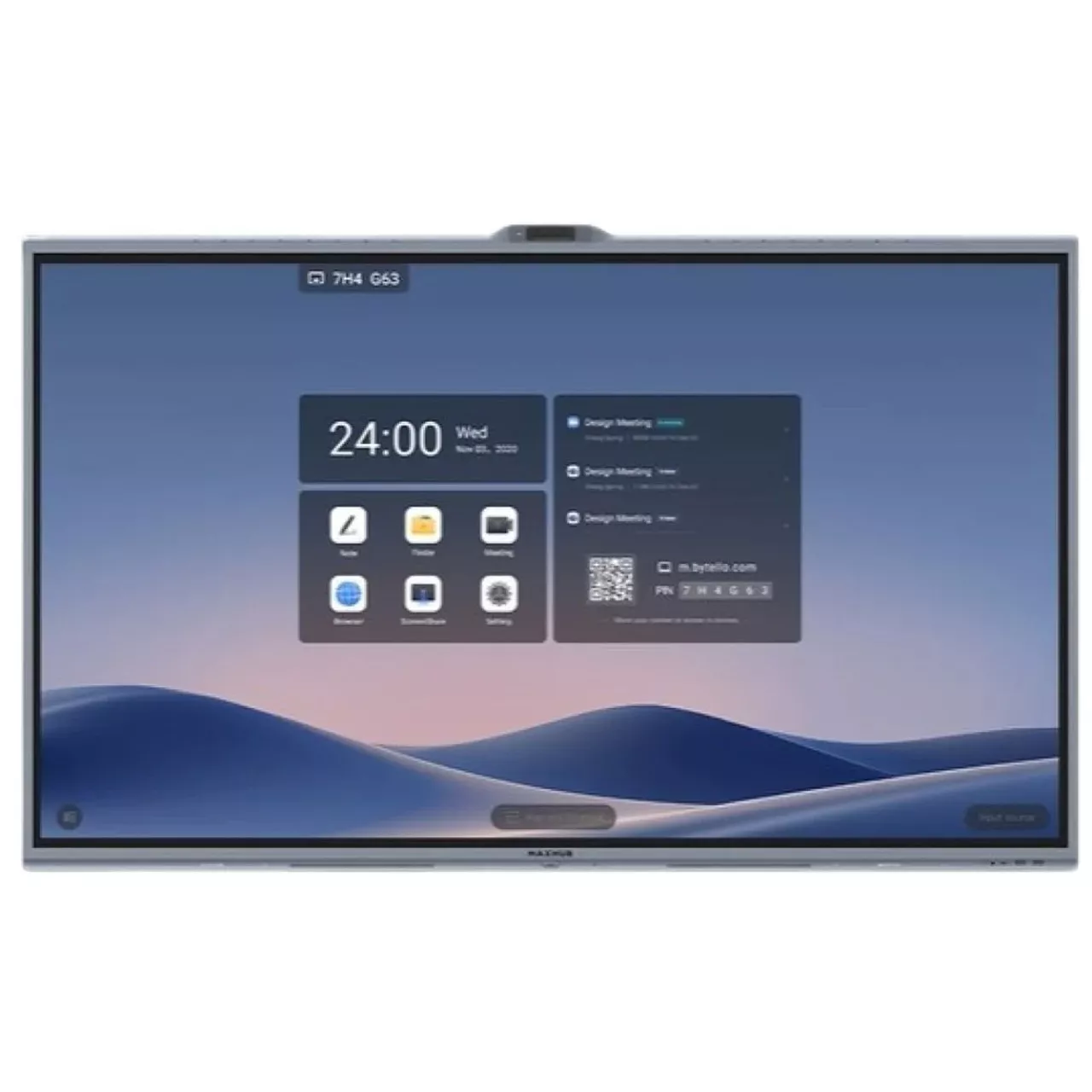

MAXHUB Interactive Flat Panel XBoard V7 55" 4K UHD Touch Display (MXH-V5550-WIN-I7)

​

55-inch 4K UHD Interactive Touch Display with Intel Core i7, Windows 11 Pro, and Integrated Collaboration System

TheMAXHUB XBoard V7 V5550 (MXH-V5550-WIN-I7)is a professionalInteractive Flat Paneldesigned for meeting rooms, classrooms, and collaborative workspaces. It features a55-inch 4K UHD (3840 × 2160) displaywith50-point multi-touch,Zero Parallax 9H tempered glass,Intel Core i7 PC Module,Windows 11 Pro, an integratedAI triple-camera system, a16-microphone array, and a2.1-channel speaker system, delivering an all-in-one solution for professional collaboration and video conferencing.

Key Features

​

55-inch Professional 4K UHD Display

Features:

• 55-inch display
• 3840 × 2160 (4K UHD) resolution
• 350 nits brightness
• 178° viewing angle
• 1.07 billion colors (10-bit)
• 90% NTSC color gamut
• 3 mm Zero Parallax glass
• 9H tempered glass
• Anti-glare coating with 25% haze

Delivers outstanding image quality with excellent color accuracy and reduced reflections for professional presentations.

Intelligent 50-Point Touch Technology

SupportsIntelligent Touchscreen Technologywith:

• 50 simultaneous touch points
• Windows Ink
• Palm Rejection
• Handwriting Recognition
• Multi-input Recognition
• Sharp Erase

Provides a natural and precise writing experience for collaborative meetings.

Intel Core i7 with Windows 11 Pro

Powered by anIntel Core i7 PC ModulerunningWindows 11 Pro.

Supports business applications including:

• Microsoft Office
• Microsoft Teams
• Zoom
• Google Meet
• Presentation and enterprise software

Enables true all-in-one collaboration without requiring an external PC.

AI Triple Camera and Intelligent Audio System

Built-in conferencing system includes:

• Three 50MP AI cameras
• Auto Framing
• Speaker Tracking
• 5× Hybrid Zoom
• Privacy Shutter

Audio system features:

• 2 × 10W speakers + 20W subwoofer
• 16-microphone array
• Up to15-meter voice pickup
• AI Noise Cancellation
• Echo Cancellation
• AI Spatial Sound

Delivers exceptional audio and video quality for professional video conferencing.

Comprehensive Connectivity

Equipped with:

• HDMI IN ×2
• HDMI OUT ×1
• USB Type-C
• USB 3.0
• USB 2.0
• USB Touch
• RJ45 LAN
• RS232
• Audio In / Audio Out
• Wi-Fi 6
• Bluetooth 5.2

Provides flexible connectivity for modern meeting environments.

Wireless Collaboration and Centralized Management

Supports:

• MAXHUB Share
• BYOM
• Miracast
• AirPlay
• Chromecast
• P2P Screen Sharing
• MAXHUB Pivot Device Management
• Microsoft Intune
• RS232 / IP Control
• Crestron, Extron, and Q-SYS integration

Simplifies wireless collaboration and enterprise device management.

Designed for Modern Meeting Spaces

Features:

• VESA400 × 200 mm
• Slim modern design
• More than50,000-hour panel lifespan
• Rated for16 hours of operation per day, 7 days a week

Ideal for conference rooms, classrooms, and collaborative environments.

Ideal Applications

​

• Corporate Meeting Rooms
• Smart Classrooms
• Video Conferencing
• Training Rooms
• Boardrooms
• Co-working Spaces
• Digital Collaboration
• Presentation Rooms

Why Choose MAXHUB XBoard V7 V5550

​

TheMAXHUB XBoard V7 V5550 (MXH-V5550-WIN-I7)combines a55-inch 4K UHD display, 50-point touch technology, Intel Core i7 with Windows 11 Pro, AI triple-camera system, 16-microphone array, 2.1-channel speakers, and comprehensive connectivityinto a single all-in-one collaboration solution, making it an excellent choice for modern meeting rooms, smart classrooms, and enterprise collaboration environments.
