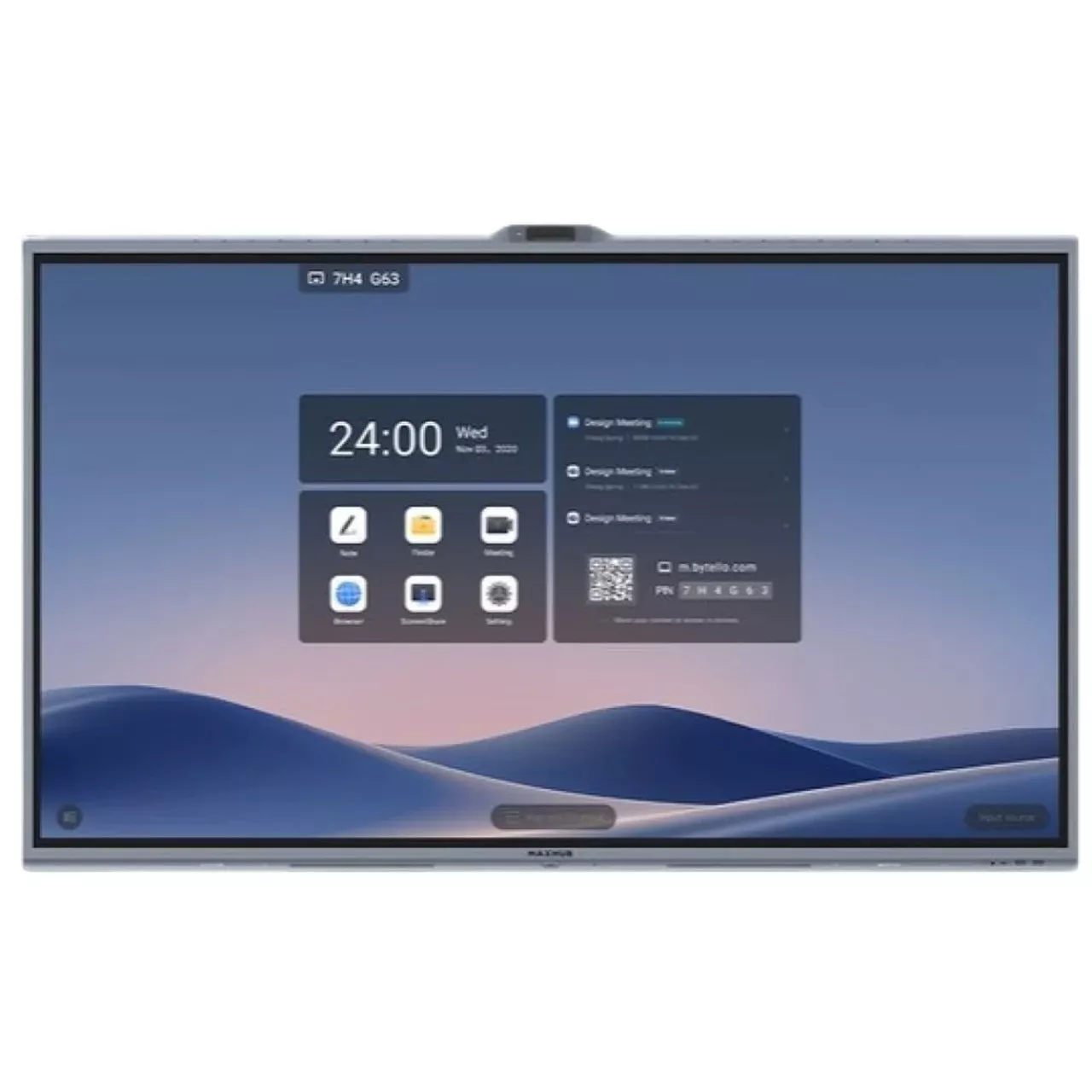

MAXHUB Interactive Flat Panel XBoard V7 75" 4K UHD Touch Display (MXH-V7550-WIN-I5)

​

75-inch 4K UHD Interactive Touch Display with Intel Core i5, Windows 11 Pro, and Integrated Collaboration System

TheMAXHUB XBoard V7 V7550 (MXH-V7550-WIN-I5)is a professionalInteractive Flat Paneldesigned for medium to large meeting rooms, smart classrooms, and collaborative workspaces. It features a75-inch 4K UHD (3840 × 2160) displaywith50-point multi-touch,Zero Parallax 9H tempered glass, anIntel Core i5 PC Module,Windows 11 Pro, an integratedAI triple-camera system, a16-microphone array, and a2.1-channel speaker system, providing an all-in-one solution for professional collaboration and video conferencing.

Key Features

​

75-inch Professional 4K UHD Display

Features:

• 75-inch display
• 3840 × 2160 (4K UHD) resolution
• 350 nits brightness
• 60Hz refresh rate
• 178° viewing angle
• 1.07 billion colors (10-bit)
• 90% NTSC color gamut
• 5000:1 contrast ratio
• 3 mm Zero Parallax glass
• 9H tempered glass
• Anti-glare coating with 25% haze

Delivers outstanding image quality with excellent color accuracy and reduced reflections for professional meetings and presentations.

Intelligent 50-Point Touch Technology

SupportsIntelligent Touchscreen Technologywith:

• 50 simultaneous touch points
• ±0.5 mm touch accuracy
• ≤2.5 ms response time
• Windows Ink
• Palm Rejection
• Handwriting Recognition
• Multi-input Recognition
• Sharp Erase

Provides a natural and highly accurate writing experience for collaboration and interactive presentations.

Intel Core i5 with Windows 11 Pro

Powered by anIntel Core i5 PC ModulerunningWindows 11 Pro.

Supports business applications including:

• Microsoft Office
• Microsoft Teams
• Zoom
• Google Meet
• Presentation software
• Enterprise applications

Enables a true all-in-one collaboration experience without requiring an external PC.

AI Triple Camera and Intelligent Audio System

Built-in conferencing system includes:

• Three 50MP AI cameras
• 99° ultra-wide field of view
• Auto Framing
• Speaker Tracking
• Multiple-speaker Tracking
• Intelligent Focus
• 5× Hybrid Zoom
• Privacy Shutter

Audio system features:

• 2 × 10W speakers + 20W subwoofer
• 2.1-channel sound system
• 16-microphone array
• Up to15-meter voice pickup
• AI Noise Cancellation (ANC)
• Echo Cancellation (AEC)
• Auto Gain Control (AGC)
• AI Spatial Sound
• Intelligent Audio Fence

Delivers crystal-clear audio and video performance for hybrid meetings and video conferencing.

Comprehensive Connectivity

Equipped with:

• HDMI IN ×2
• HDMI OUT ×1
• USB Type-C
• USB 3.0
• USB 2.0
• USB Touch
• RJ45 LAN
• RS232
• Audio In / Audio Out
• Wi-Fi 6
• Bluetooth 5.2

Provides flexible connectivity for modern business and education environments.

Wireless Collaboration and Centralized Management

Supports:

• MAXHUB Share
• BYOM
• Miracast
• AirPlay
• Chromecast
• P2P Screen Sharing
• MAXHUB Pivot Device Management
• Microsoft Intune
• RS232 / IP Control
• Crestron, Extron, and Q-SYS integration

Simplifies wireless collaboration and centralized enterprise device management.

Designed for Modern Meeting Spaces

Features:

• VESA 800 × 400 mm
• Slim and modern design
• More than50,000-hour panel lifespan
• Rated for16 hours of operation per day, 7 days a week

Ideal for large conference rooms, classrooms, and collaborative workspaces.

Ideal Applications

​

• Corporate Meeting Rooms
• Large Conference Rooms
• Smart Classrooms
• Video Conferencing
• Training Rooms
• Boardrooms
• Co-working Spaces
• Digital Collaboration
• Presentation Rooms

Why Choose MAXHUB XBoard V7 V7550

​

TheMAXHUB XBoard V7 V7550 (MXH-V7550-WIN-I5)combines a75-inch 4K UHD display, 50-point touch technology, Intel Core i5 with Windows 11 Pro, AI triple-camera system, 16-microphone array, 2.1-channel speakers, and comprehensive connectivityinto a single all-in-one collaboration display, making it the ideal solution for modern meeting rooms, smart classrooms, and enterprise collaboration environments.
