Storage NAS Synology DiskStation DS1522+ 5-BAY (SNG-DS1522PLUS)

Storage NAS Synology DiskStation DS1522+ 5-BAY (SNG-DS1522PLUS)

​

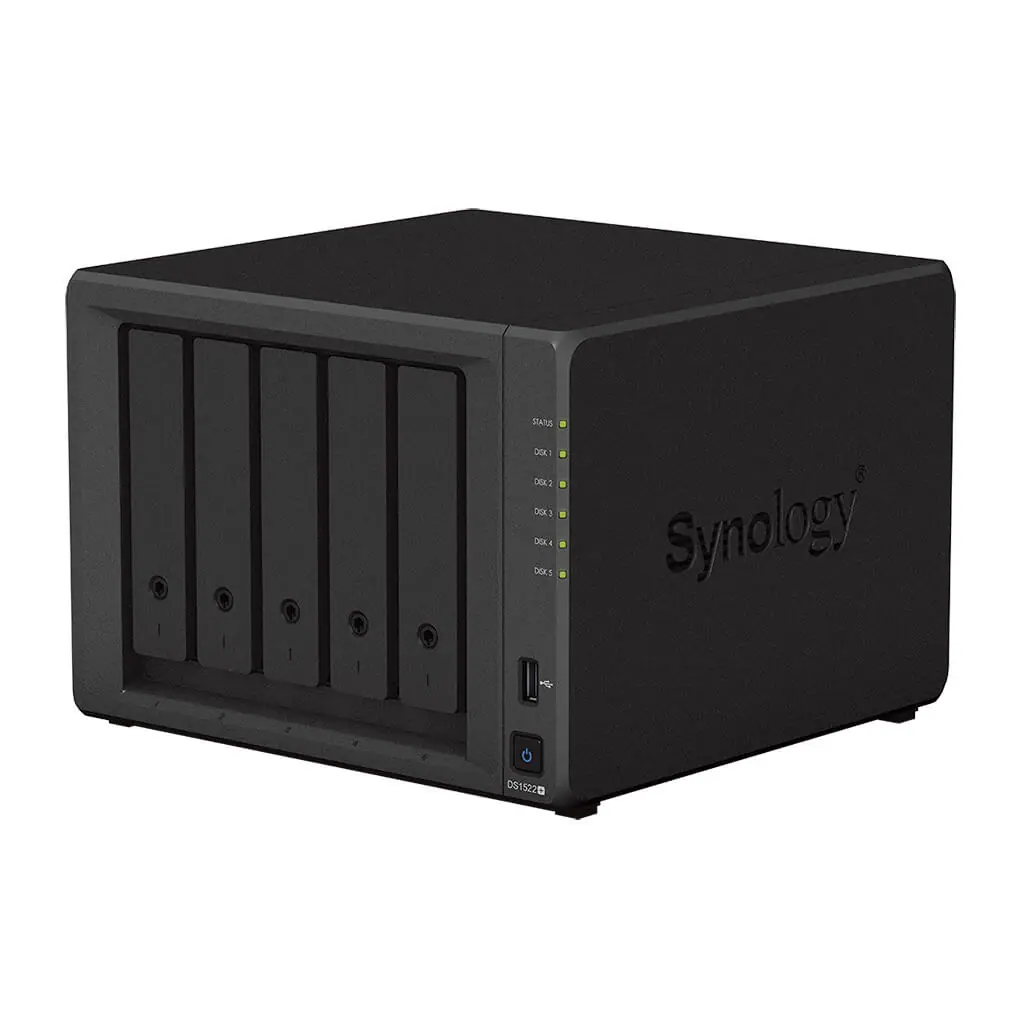

The Synology DS1522+ (SNG-DS1522PLUS) is a 5-bay desktop DiskStation providing flexible data management for homes and SOHO environments, designed for small offices and IT enthusiasts. It's easy to scale and expand as your needs change, with support for up to 15 drives, fast networking, and NVMe SSD caching.

Key Features of Synology DS1522+

​

5 Drive Bays, Expandable to 15 Drives
Supports 5 x 3.5" or 2.5" SATA III HDDs/SSDs, expandable up to 15 drives with two DX517 expansion units.

Powered by a Dual-Core AMD Ryzen R1600 Processor
Driven by a 2-core AMD Ryzen R1600 processor at 2.6 GHz (up to 3.1 GHz Turbo), with 8GB of DDR4 ECC memory (expandable up to 32GB), handling more demanding workloads and greater numbers of concurrent users.

Up to 796 MB/s Performance
Delivers sequential read speeds of up to 736 MB/s and write speeds of up to 796 MB/s, ideal for fast, stable data transfer.

Built-In M.2 NVMe SSD Cache Without Sacrificing Drive Bays
Equipped with two M.2 2280 NVMe PCIe 3.0 x4 slots for SSD caching or additional storage pools, accelerating data access without occupying the main drive bays.

Networking with Link Aggregation and 10GbE Upgrade Support

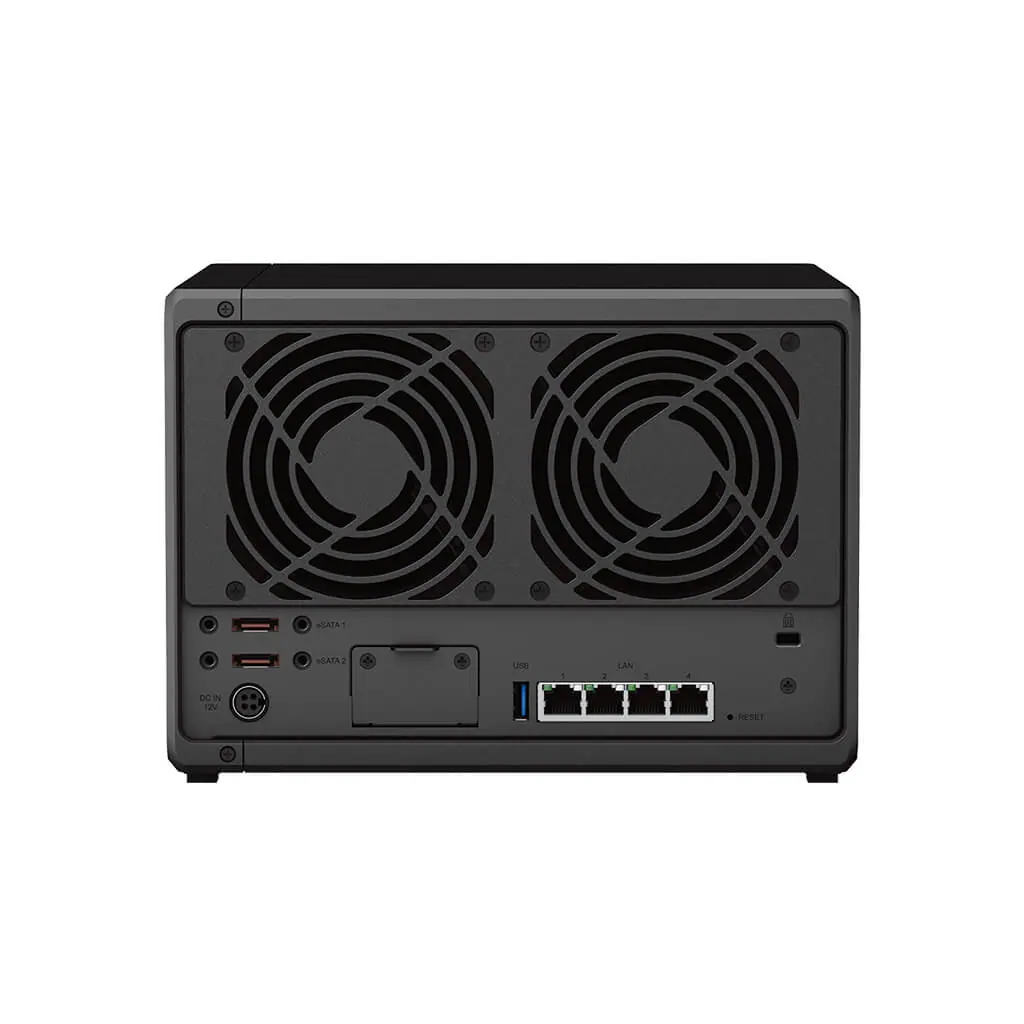

Equipped with four Gigabit Ethernet ports supporting automatic network failover and load balancing, plus a network upgrade slot for adding an E10G22-T1-Mini module to instantly enable 10GbE networking.

Comprehensive Connectivity
Equipped with two USB 3.2 Gen 1 Type-A ports and two eSATA ports for peripheral connectivity and additional expansion.

DDR4 ECC Memory for Data Integrity
Comes with ECC (Error-Correcting Code) memory that helps prevent memory-related data errors — essential for business-critical information.

Multiple RAID Types for Data Protection
Supports RAID 0, 1, 5, 6, 10, Basic, Synology Hybrid RAID (SHR), and JBOD, offering flexibility based on performance and data protection needs.

Btrfs File System with Data Protection Technology
Built on the Btrfs file system to prevent data corruption, with self-healing support for long-term storage reliability.

Managed Through Synology DSM
Powered by DiskStation Manager (DSM) software covering data sharing, file synchronization, backup, and surveillance in a single solution, with AES-256 encryption support for surveillance camera recordings.

Ideal Applications

​

• Small businesses and SOHO offices needing flexible storage solutions
• IT enthusiasts and professionals wanting a diskless design to choose their own drives
• Virtualization and virtual machine deployment
• Surveillance systems for small offices
• Businesses wanting to start small and expand as data grows

Why Choose Synology DS1522+

​

The Synology DS1522+ is a 5-bay DiskStation offering high flexibility with performance up to 796 MB/s and scalability up to 15 drives, backed by DDR4 ECC memory that maintains data integrity. It's the ideal choice for small businesses and SOHO offices needing a reliable storage solution ready to support future data growth.
