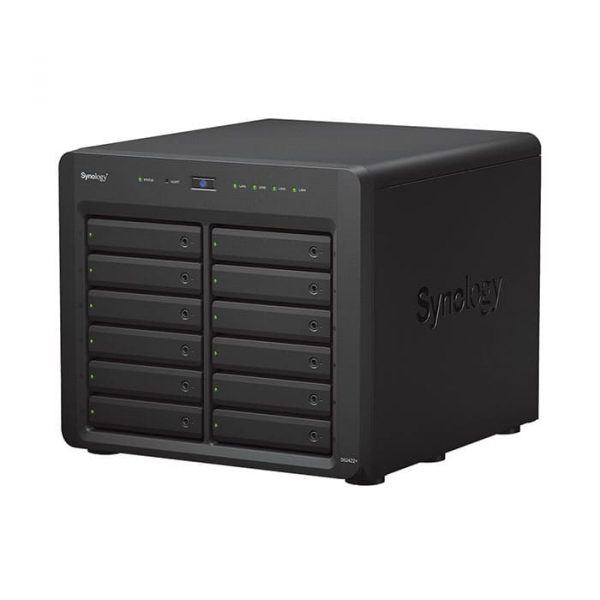

Storage NAS Synology DiskStation DS2422+ 12-BAY (SNG-DS2422Plus)

Storage NAS Synology DiskStation DS2422+ 12-BAY (SNG-DS2422Plus)

​

The Synology DS2422+ (SNG-DS2422Plus) is a 12-bay desktop DiskStation designed for small and medium-sized businesses with large storage, file sharing, and data protection requirements in multi-user environments. It comes with powerful storage management, file syncing, surveillance, and backup software, and is well suited for high-quality video editing and virtual machine storage.

Key Features of Synology DS2422+

​

12 Drive Bays in a Desktop Chassis, Expandable to 24 Drives
Supports 12 x 3.5" or 2.5" SATA HDDs/SSDs, expandable up to 24 drives with one DX1222 expansion unit.

Powered by a Quad-Core AMD Ryzen V1500B Processor
Driven by a 4-core AMD Ryzen V1500B processor at 2.2 GHz, with 4GB of DDR4 ECC memory (expandable up to 32GB), efficiently handling multiple simultaneous tasks.

Significant Performance Gains Over the Previous Generation
Delivers sequential read speeds of up to 2,201 MB/s and write speeds of up to 1,383 MB/s — a 26.8% increase in read and 122.9% increase in write performance over its predecessor (DS2419+), ideal for heavy workloads and multiple concurrent users.

Supports 10/25GbE Expansion Cards and NVMe SSD Cache
Equipped with a PCIe 3.0 x8/x4 slot for optional 10GbE SFP+/RJ45 or 25GbE SFP28 network cards, as well as NVMe SSD adapter cards for SSD caching, or a combination card that adds both high-speed networking and SSD cache in one.

Comprehensive Connectivity

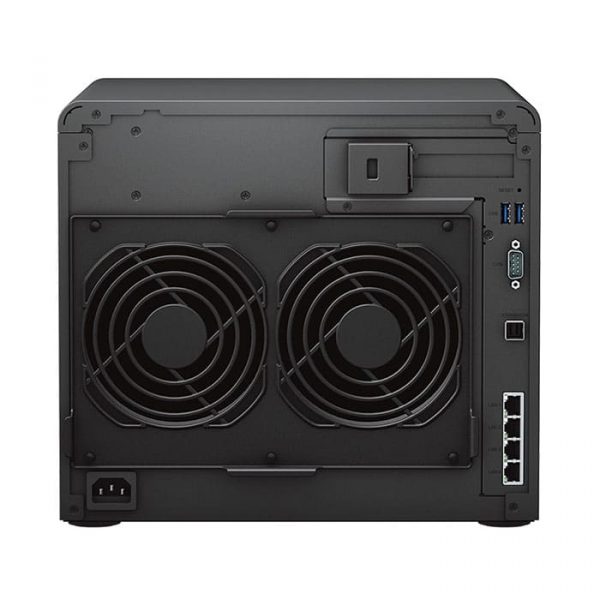

Equipped with four Gigabit Ethernet ports, two USB 3.2 Gen 1 Type-A ports, and one Mini-SAS port for connecting expansion units.

Multiple RAID Types for Data Protection
Supports RAID 0, 1, 5, 6, 10, Basic, Synology Hybrid RAID (SHR), and JBOD, offering flexibility based on performance and data protection needs.

Full Virtualization Support
Compatible with VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack, with the ability to run virtual machines across up to seven Synology NAS units in a cluster for live migration and reduced downtime during maintenance.

Btrfs File System with Snapshot Replication
Built on the Btrfs file system with snapshot replication support, ensuring data integrity and efficient storage management.

File Sync and Edge Server Capabilities for Multiple Locations
Can be deployed as an edge server for convenient file access, sharing, and synchronization across locations and platforms, with version control for restoring previous file or folder versions.

Managed Through Synology DSM
Powered by DiskStation Manager (DSM) software, covering file management, surveillance, and backup from a single interface.

Ideal Applications

​

• SMBs with large-scale storage requirements
• Multi-user environments
• High-quality video editing
• Virtual machine (VM) storage
• File sharing and synchronization across branch offices
• Surveillance systems and business data protection

Why Choose Synology DS2422+

​

The Synology DS2422+ is a 12-bay DiskStation delivering up to 2,201 MB/s performance, powered by a quad-core AMD Ryzen processor with support for NVMe SSD cache and 10/25GbE high-speed networking. It's the ideal choice for SMBs needing a large-scale storage solution that's fast, reliable, and ready to support future data growth.
