Storage NAS Synology DiskStation DS923+ 4-BAY (SNG-DS923PLUS)

Storage NAS Synology DiskStation DS923+ 4-BAY (SNG-DS923PLUS)

​

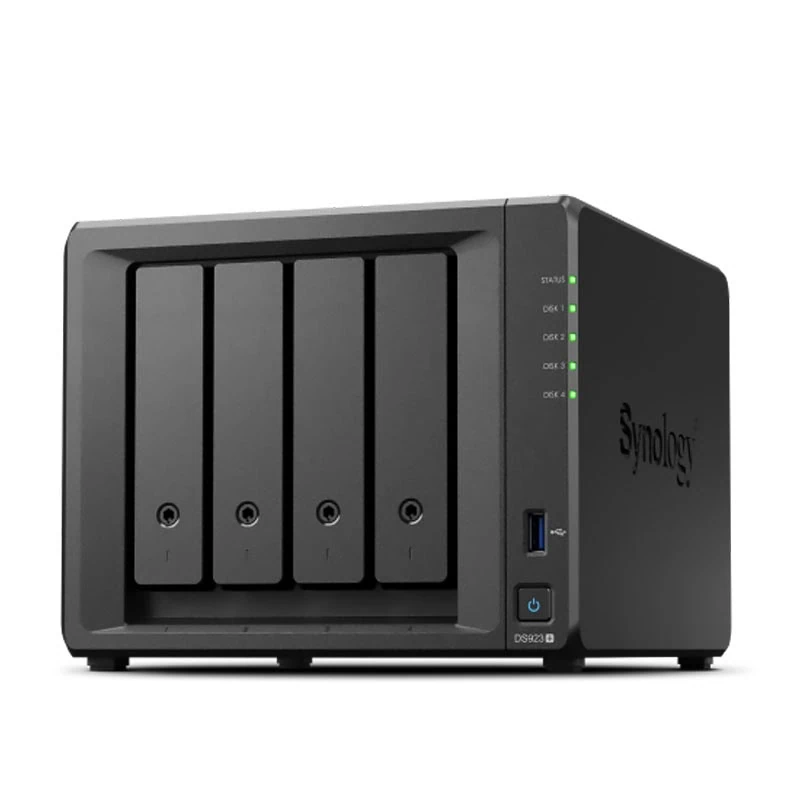

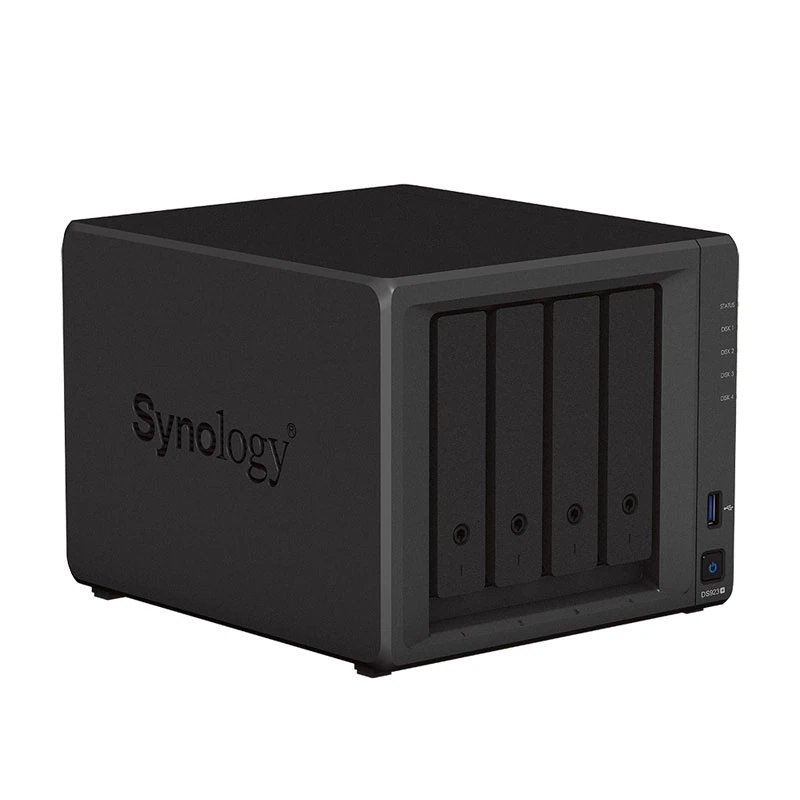

The Synology DS923+ (SNG-DS923PLUS) is a 4-bay desktop DiskStation offering flexible data sharing for homes and small businesses. It's easy to adjust and expand as your needs change, with support for up to 9 drives, faster networking, and NVMe SSDs for caching or additional storage pools.

Key Features of Synology DS923+

​

4 Drive Bays, Expandable to 9 Drives
Supports 4 x 3.5" or 2.5" SATA HDDs/SSDs with hot-swappable drive support, expandable up to 9 drives with one DX517 expansion unit, supporting a maximum single volume size of up to 108TB.

Powered by a Dual-Core AMD Ryzen R1600 Processor
Driven by a 2-core, 4-thread AMD Ryzen R1600 processor at 2.6 GHz (up to 3.1 GHz Turbo), with a hardware encryption engine and 4GB of DDR4 ECC SODIMM memory (expandable up to 32GB across 2 slots).

Up to 625 MB/s Performance
Delivers sequential read/write speeds of up to 625/559 MB/s, enabling faster and more stable file operations and data management.

Built-In M.2 NVMe SSD Cache Without Sacrificing Drive Bays
Equipped with two M.2 2280 NVMe SSD slots for SSD caching or additional storage pools, accelerating data access without occupying the main drive bays.

Networking with Link Aggregation and 10GbE Upgrade Support

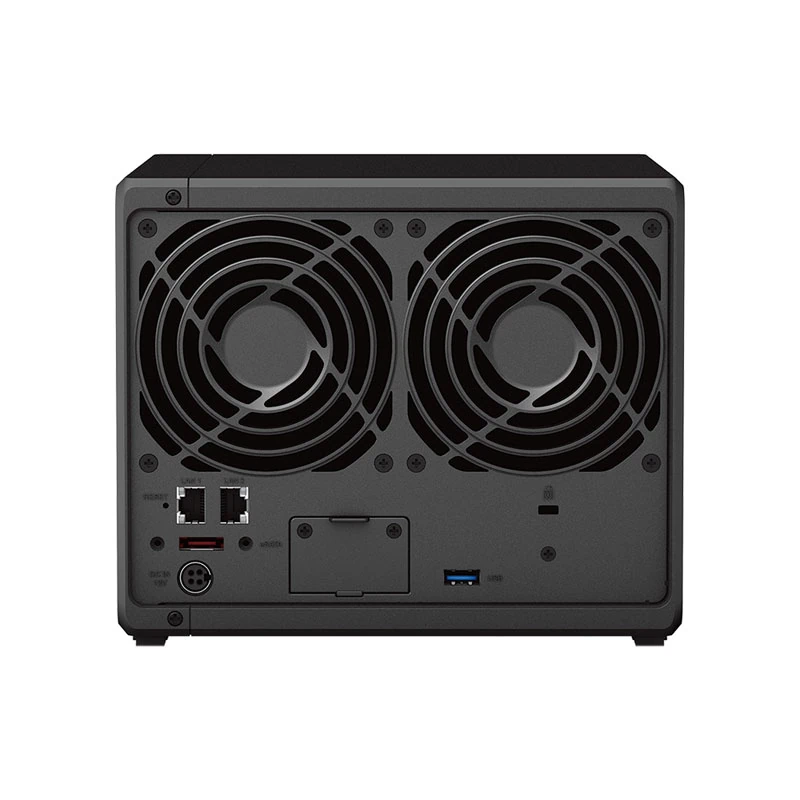

Equipped with two Gigabit Ethernet ports supporting link aggregation and failover, plus a PCIe Gen 3.0 x2 slot for optional 10GbE network cards or M.2 adapters to boost network speed and performance.

Comprehensive Connectivity
Equipped with two USB 3.2 Gen 1 ports and one eSATA port for connecting an expansion unit.

Multiple RAID Types for Data Protection
Supports RAID 0, 1, 5, 6, 10, Basic, Synology Hybrid RAID (SHR), and JBOD, offering flexibility based on performance and data protection needs.

Btrfs File System with Data Protection Technology
Built on the Btrfs file system (internal) to prevent data corruption, with ext4 support for added usage flexibility.

Surveillance System with High-Security Standards
Supports HTTPS/SRTP and US NDAA/TAA compliance, ideal for security-sensitive applications, with support for over 17,000 devices through Surveillance Station.

Managed Through Synology DSM
Powered by DiskStation Manager (DSM) software covering file and photo management, data protection, virtualization, and surveillance in a single solution.

Ideal Applications

​

• Homes and small businesses needing flexible storage solutions
• Consolidating data scattered across devices and public cloud accounts
• Private cloud systems for small organizations
• Surveillance systems and physical asset protection
• Photo and video management for everyday users to professionals

Why Choose Synology DS923+

​

The Synology DS923+ is a 4-bay DiskStation offering high flexibility with performance up to 625 MB/s and scalability up to 9 drives, along with built-in M.2 NVMe cache that accelerates system performance. It's the ideal choice for homes and small businesses needing a reliable storage solution ready to support future data growth.
