Storage NAS Synology FlashStation FS6400 24-BAY (KIT-SNG-FS6400#1)

Storage NAS Synology FlashStation FS6400 24-BAY (KIT-SNG-FS6400#1)

​

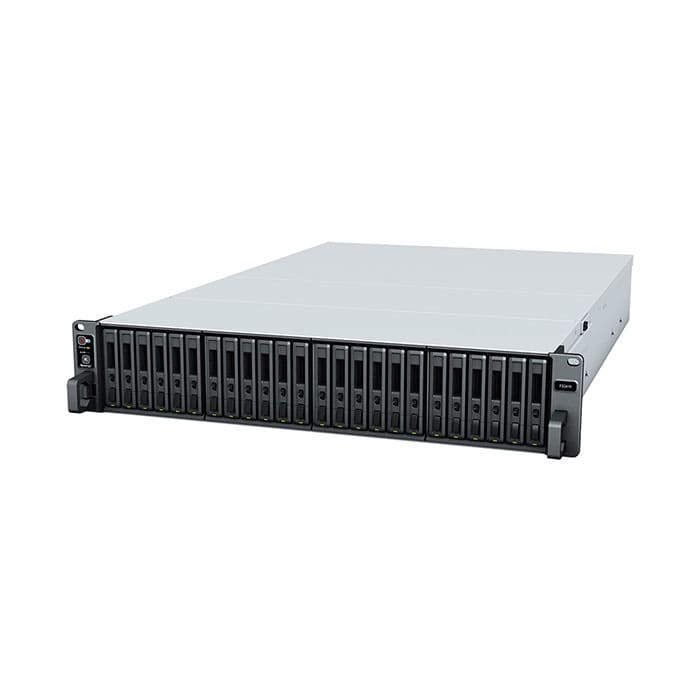

The Synology FlashStation FS6400 (KIT-SNG-FS6400#1) is a 24-bay, 2U all-flash server designed for I/O-intensive and latency-sensitive workloads such as multimedia post-production, virtual machines, online transaction processing, and enterprise databases. Built entirely with SSDs, it delivers consistently fast read/write performance.

Key Features of Synology FlashStation FS6400

​

24 All-Flash Drive Bays, Expandable to 72 Drives
Supports 24 x 2.5" SAS or SATA SSDs, delivering up to 184.32TB of raw capacity, expandable up to 72 drives with RX1217sas or FX2421 expansion units — supporting up to 552.96TB in total.

Powered by Dual Intel Xeon Silver 4110 Processors
Driven by two 8-core Intel Xeon Silver 4110 processors at 2.1 GHz (up to 3.0 GHz Turbo), with a hardware encryption engine (AES-NI) and AES 256-bit encryption support.

32GB DDR4 ECC RAM, Expandable to 512GB
Comes with 32GB of DDR4 ECC RDIMM memory, expandable up to 512GB across 16 memory slots, supporting enterprise workloads that demand accuracy and data stability.

Up to 240,000 IOPS Performance
Delivers up to 240,000 4K random write IOPS, ideal for workloads requiring high speed and low latency, such as databases and virtual machines.

High-Speed Networking with Link Aggregation

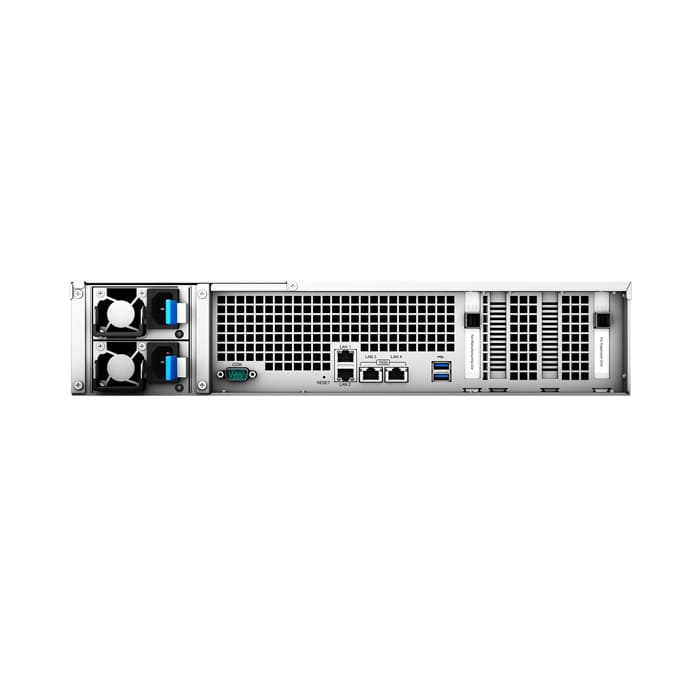

Equipped with two 10GbE ports and two Gigabit Ethernet ports, with built-in support for Link Aggregation and failover, plus optional Ethernet expansion cards on PCIe 3.0 slots for even higher speeds.

Supports Multiple RAID Types, Including RAID F1
Supports RAID 0, 1, 5, 6, 10, Basic, JBOD, and RAID F1 — designed specifically for SSDs, distributing workload unevenly across drives to extend lifespan and enhance data protection.

Dual Redundant 800W Power Supplies
Comes with two redundant 800W power supplies that help prevent downtime in case of a power supply failure.

Cooled by Four System Fans
Equipped with four 80 x 80mm cooling fans to keep the system running reliably 24/7.

Managed Through Synology DSM
Storage management, Btrfs-based snapshots, and enterprise tools are all handled through Synology's easy-to-use DSM software.

5-Year Limited Warranty
Backed by Synology's 5-year limited warranty for long-term reliability and peace of mind.

Ideal Applications

​

• Video editing and multimedia post-production
• Virtual machines and virtualization systems
• Online transaction processing (OLTP)
• Enterprise databases requiring low latency
• Organizations needing maximum read/write performance
• Data centers requiring all-flash storage for peak performance

Why Choose Synology FlashStation FS6400

​

The Synology FS6400 is an enterprise all-flash server delivering up to 240,000 IOPS, powered by dual Intel Xeon Silver processors, RAM expandable up to 512GB, and high-speed networking. It's the ideal choice for organizations needing a fast, stable storage solution ready to handle any I/O-intensive workload.
