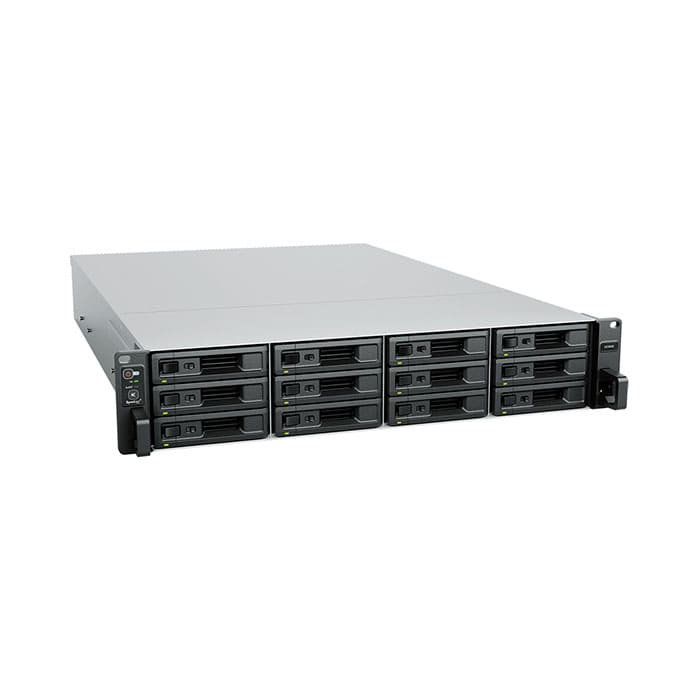

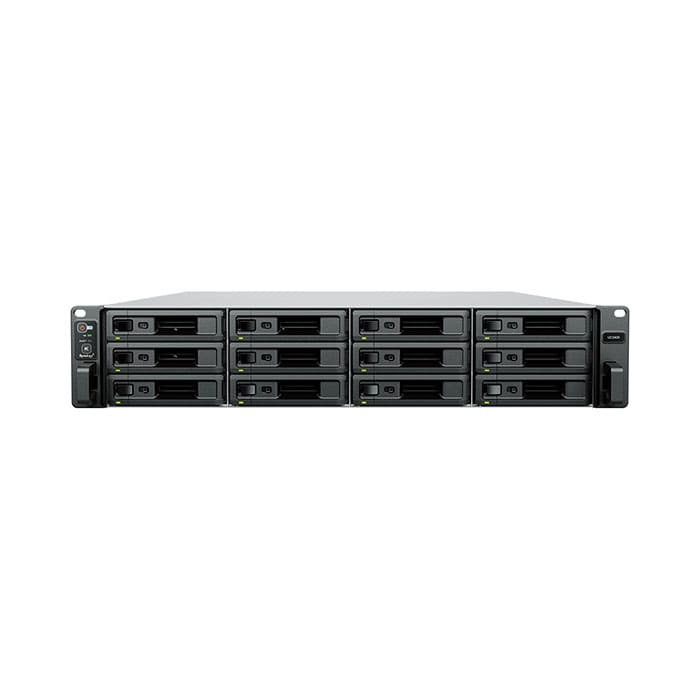

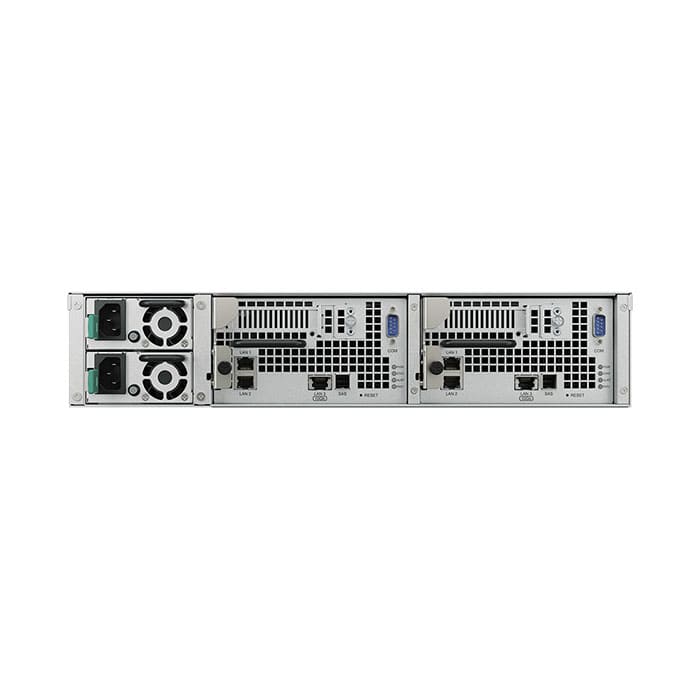

Storage NAS Synology FlashStation UC3400 12-BAY (KIT-SNG-UC3400#1)

Storage NAS Synology UC3400 12-BAY (KIT-SNG-UC3400#1)

​

The Synology UC3400 (KIT-SNG-UC3400#1) is a 12-bay, 2U SAN enclosure designed for environments requiring high availability. Its active-active dual controller architecture ensures uninterrupted block storage services even if one controller encounters an issue — making it ideal for organizations running mission-critical systems that depend on storage reliability.

Key Features of Synology UC3400

​

Active-Active Dual Controller Architecture
Equipped with dual controllers operating in active-active mode, ensuring uninterrupted iSCSI and Fibre Channel (FC) services even if one controller fails.

12 Drive Bays, Expandable to 36 Drives
Supports 12 x 3.5" SAS HDDs or 2.5" dual-port SAS SSDs, expandable up to 36 drives with two RXD1219sas expansion units — supporting up to 576TB of raw capacity.

Powered by Dual Intel Xeon D-1541 Processors
Driven by two 8-core Intel Xeon D-1541 processors at 2.1 GHz (one per controller), paired with DDR4 ECC RAM for efficient handling of enterprise workloads.

Over 180,000 IOPS Performance
Delivers over 180,000 4K random write IOPS, ideal for workloads requiring high read/write speed such as virtualization and database systems.

High-Speed Networking with Comprehensive Ports
Built-in 10Gb Ethernet and Gigabit Ethernet ports, with support for optional 10/25GbE Ethernet cards or 16Gb Fibre Channel HBAs to boost network performance as needed.

Full Virtualization Support
Compatible with major virtualization platforms, with snapshot protection and fast recovery of virtual machines on iSCSI LUNs in the event of a disaster.

Self-Encrypting Drive (SED) Support
Supports self-encrypting drives for hardware-level data encryption, adding an extra layer of security for sensitive enterprise data.

Multiple RAID Configurations for Data Protection
Supports RAID 0, 1, 5, 6, and 10, offering flexibility based on performance and data protection needs.

Ideal Applications

​

• High-availability SAN systems for enterprises
• Data centers requiring continuous block storage services
• Enterprise virtualization and database systems
• Workloads requiring high IOPS and low latency
• Mission-critical environments requiring strong data security

Why Choose Synology UC3400

​

The Synology UC3400 is an active-active dual controller SAN system that delivers high availability, strong processing performance, and enterprise-grade data security. It's the ideal choice for organizations needing block storage that keeps running continuously, even when individual components encounter issues.
