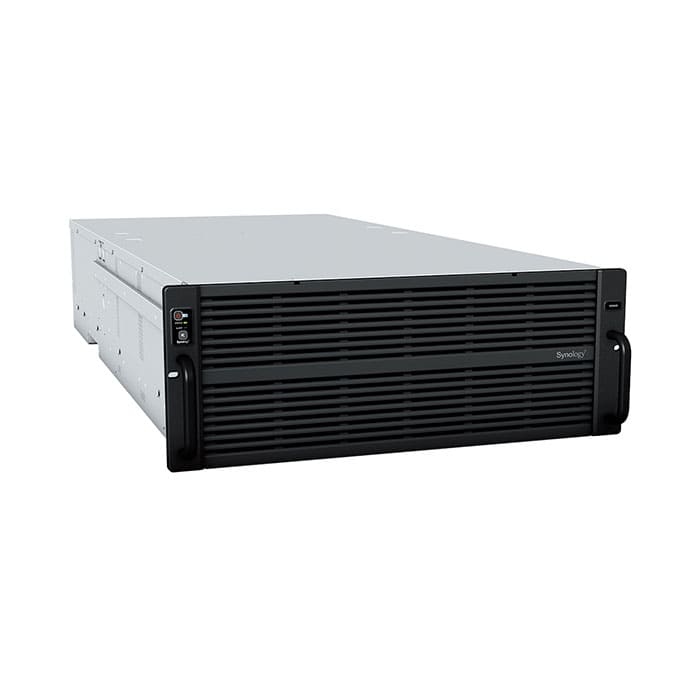

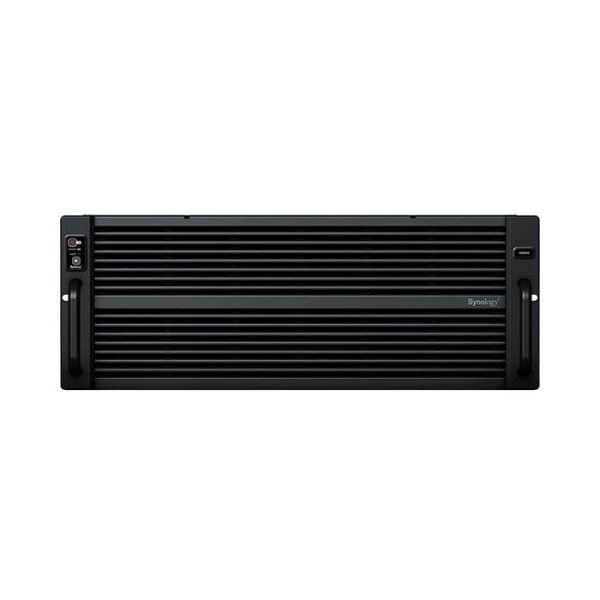

Storage NAS Synology RackStation High Density HD6500 60-BAY (SNG-HD6500)

Storage NAS Synology RackStation High Density HD6500 60-BAY (SNG-HD6500)

​

The Synology High Density HD6500 (SNG-HD6500) is an enterprise RackStation designed to meet large-scale storage demands. Housed in a 4U rackmount enclosure with 60 drive bays, expandable up to 300 drives, it's ideal for enterprise backup, video post-production, and large-scale surveillance deployments that require both massive capacity and top-tier performance.

Key Features of Synology High Density HD6500

​

60 Drive Bays in a 4U Chassis, Expandable to 300 Drives
Supports 60 x 3.5" SAS hard drives or 2.5" SATA SSDs in a single enclosure, and can scale up to 300 drives with four RX6022sas expansion units — built to handle petabyte-scale data growth.

Powered by Dual Intel Xeon Silver 4210R Processors
Driven by two 10-core Intel Xeon Silver 4210R processors running at 2.4 GHz (up to 3.2 GHz Turbo), with AES-NI hardware encryption for efficient handling of demanding workloads.

64GB DDR4 ECC RAM, Expandable to 512GB
Comes with 64GB of DDR4 ECC RDIMM memory, expandable up to 512GB across 16 memory slots, supporting enterprise workloads that demand accuracy and data stability.

Exceptional Performance of Over 6,688 MB/s
Delivers sequential read and write speeds of up to 6,688/6,662 MB/s, ideal for workloads requiring fast transfer of large volumes of data.

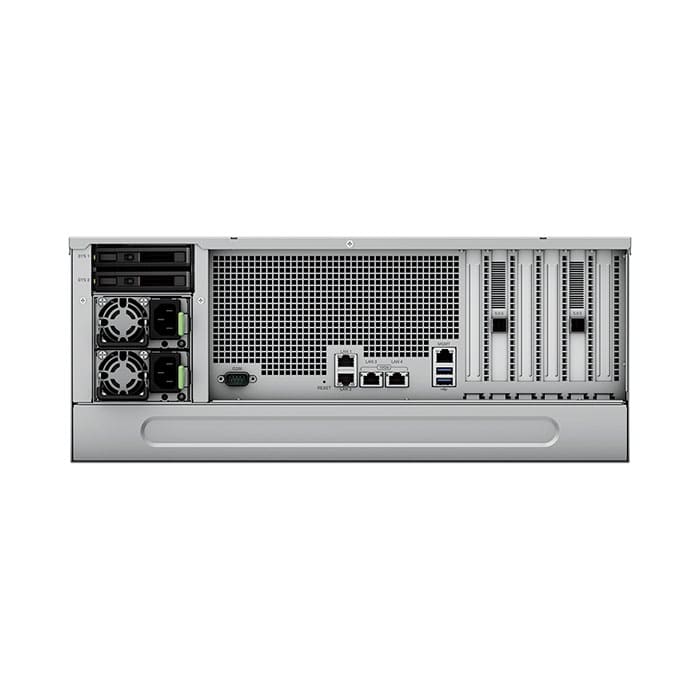

High-Speed Networking with Comprehensive Ports
Equipped with two 10 Gigabit Ethernet ports and two Gigabit Ethernet ports, with optional expansion cards for 10GbE, 25GbE, and Fibre Channel for enterprise-grade connectivity.

Dual Power Supply and SAS Multipath for Maximum Reliability
Features redundant 1600W power supplies and SAS multipath connectivity, reducing single points of failure and increasing system availability.

Out-of-Band (OOB) Management
Supports remote management of powered-down devices, making troubleshooting and log access easier for administrators.

Supports Multiple RAID Configurations
Supports RAID 0, 1, 5, 6, 10, Basic, and JBOD, offering flexibility based on performance and data protection requirements.

Ideal Applications

​

• Data centers and large enterprises
• Enterprise-grade full system backups
• Video editing and media production
• Large-scale surveillance systems (supports up to 650 connected IP cameras)
• Private cloud and multi-petabyte storage systems
• Mission-critical environments requiring high capacity and reliability

Why Choose Synology High Density HD6500

​

The Synology HD6500 is an enterprise RackStation offering up to 60 drive bays, expandable to 300 drives, with processing power from dual Intel Xeon Silver processors and high-speed networking. It's the ideal choice for enterprises and data centers seeking a large-scale storage solution that is stable, secure, and ready to support petabyte-scale data growth.
