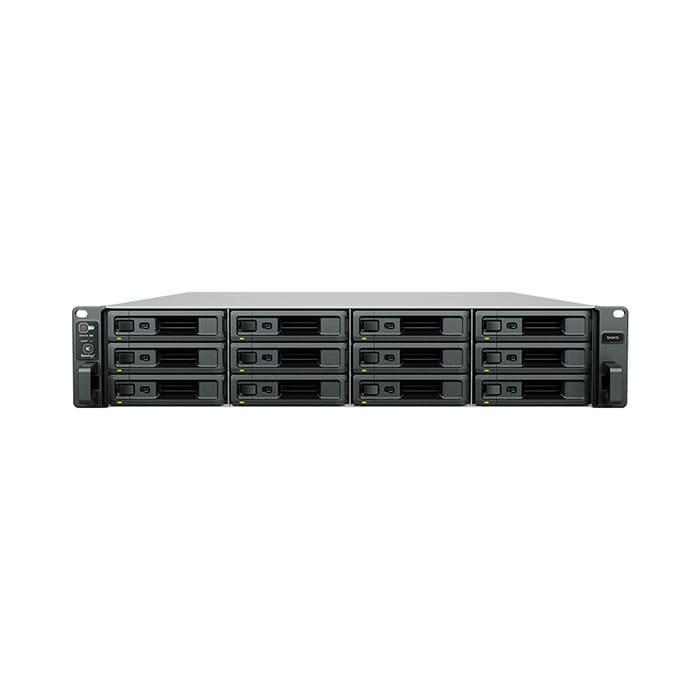

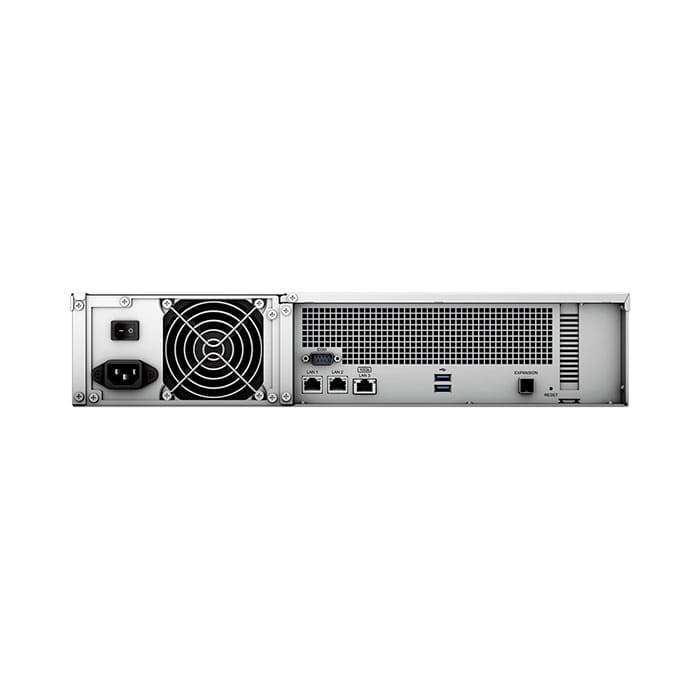

Storage NAS Synology RackStation RS2423+ 12-BAY (KIT-SNG-RS2423P1)

Storage NAS Synology RackStation RS2423+ 12-BAY (KIT-SNG-RS2423P1)

​

The Synology RS2423+ (KIT-SNG-RS2423P1) is a 12-bay, 2U RackStation designed for small to medium-sized businesses and branch offices needing central data storage, backup, and surveillance solutions at a cost-effective price, with a significant performance boost over its predecessor.

Key Features of Synology RS2423+

​

12 Drive Bays, Expandable to 24 Drives with Up to 216TB Capacity
Supports 12 x 3.5" SATA HDDs or 2.5" SATA SSDs, delivering up to 216TB of raw capacity before expansion, expandable up to 24 drives with one RX1223RP expansion unit.

Powered by an AMD Ryzen V1780B Processor
Driven by an AMD Ryzen V1780B processor with 8GB of DDR4 ECC UDIMM memory, efficiently handling business workloads.

Significant Performance Improvements Over the Previous Generation
Delivers sequential read/write speeds of up to 3,500/1,700 MB/s (27% faster reads and 26% faster writes than its predecessor), with random 4K IOPS performance improved by 60% for reads and 16% for writes, reaching over 155,000/79,000 random read/write IOPS.

High-Speed Networking with Link Aggregation
Equipped with one 10GbE RJ-45 port and two Gigabit Ethernet ports that can be bonded via Link Aggregation for automatic failover and load balancing.

SSD Caching for Faster I/O
Supports NVMe or SATA SSD caching to boost read/write speeds for HDD arrays, improving overall system performance.

Flexible Configuration
Can be upgraded with faster 1/10/25GbE networking ports and SSD cache volumes as needed, whether the priority is performance, network speed, or capacity.

High Availability for Service Continuity
Two RS2423+ units can be paired through Synology High Availability to form an active-passive cluster, maximizing service uptime.

Supports a Wide Range of Business Workloads
Capable of backing up up to 300 endpoints, managing up to 75 IP cameras, or securely syncing and sharing files between devices and sites.

Managed Through Synology DSM
Powered by DiskStation Manager (DSM) software, covering file management, backup, and surveillance from a single interface.

Ideal Applications

​

• SMBs and branch offices needing central data storage
• Backup systems for endpoints and servers
• Surveillance and Network Video Recorder (NVR) systems
• File sync and sharing between branch offices
• Businesses wanting cost efficiency with improved performance

Why Choose Synology RS2423+

​

The Synology RS2423+ is a cost-effective RackStation delivering up to 155,000 IOPS and up to 216TB of capacity before expansion, with major performance gains over its predecessor. It's the ideal choice for SMBs and branch offices needing a reliable, flexible, and cost-efficient storage solution.
