Storage NAS Synology RackStation RS2423RP+ 12-BAY (KIT-SNG-RS2423RPP1)

Storage NAS Synology RackStation RS2423RP+ 12-BAY (KIT-SNG-RS2423RPP1)

​

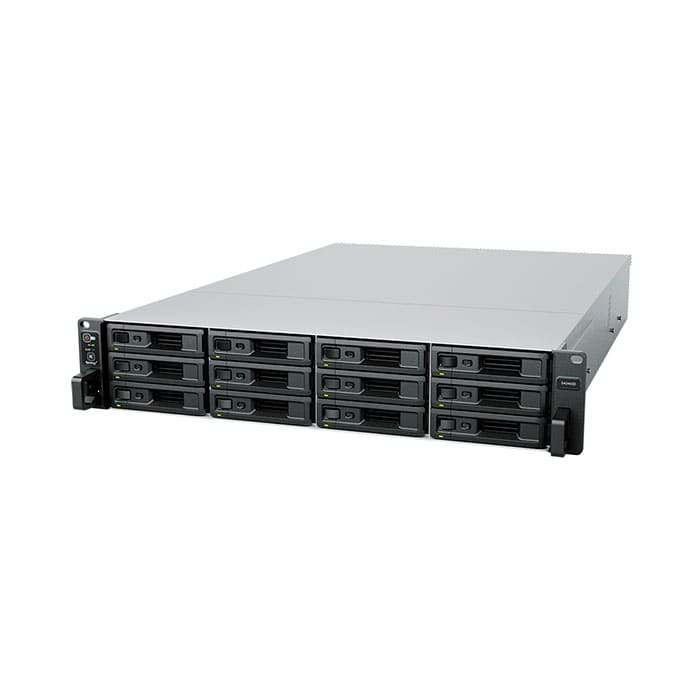

The Synology RS2423RP+ (KIT-SNG-RS2423RPP1) is a 12-bay, 2U RackStation designed for small to medium-sized businesses and branch offices needing central data storage, backup, and surveillance solutions at a cost-effective price. Its built-in redundant power supply helps protect against downtime caused by power issues.

Key Features of Synology RS2423RP+

12 Drive Bays, Expandable to 24 Drives with Up to 216TB Capacity
Supports 12 x 3.5" SATA HDDs or 2.5" SATA SSDs, delivering up to 216TB of raw capacity before expansion, expandable up to 24 drives with one RX1223RP expansion unit.

Powered by an AMD Ryzen V1780B Processor
Driven by an AMD Ryzen V1780B processor with 8GB of DDR4 ECC UDIMM memory, efficiently handling business workloads.

Up to 155,000 IOPS Performance
Delivers sequential read/write speeds of up to 3,500/1,700 MB/s, with random read/write IOPS performance of over 155,000/79,000, ideal for workloads requiring high speed.

Hot-Swappable Redundant Power Supply
Comes with a redundant 350W hot-swappable power supply that helps prevent downtime in case one power source encounters an issue, ensuring service continuity.

High-Speed Networking with Link Aggregation

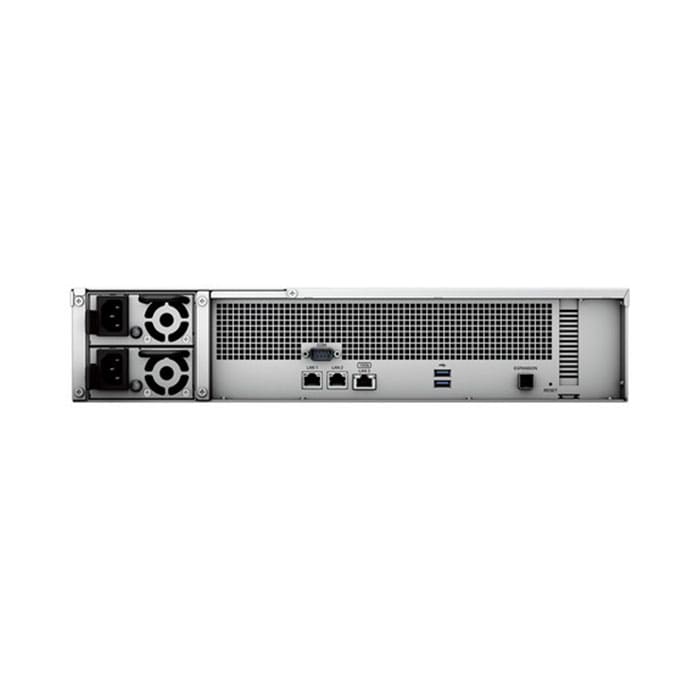

Equipped with one 10GbE RJ-45 port and two Gigabit Ethernet ports that can be bonded via Link Aggregation for automatic failover and load balancing.

SSD Caching for Faster I/O
Supports NVMe or SATA SSD caching to boost read/write speeds for HDD arrays, improving overall system performance.

Flexible Configuration
Can be upgraded with faster 1/10/25GbE networking ports and SSD cache volumes as needed, whether the priority is performance, network speed, or capacity.

High Availability for Service Continuity
Two RS2423RP+ units can be paired through Synology High Availability to form an active-passive cluster, maximizing service uptime.

Supports a Wide Range of Business Workloads
Capable of backing up up to 300 endpoints, managing 50–75 IP cameras, or securely syncing and sharing files between devices and sites.

Managed Through Synology DSM
Powered by DiskStation Manager (DSM) software, covering file management, backup, and surveillance from a single interface.

Ideal Applications

​

• SMBs and branch offices needing central data storage
• Backup systems for endpoints and servers
• Surveillance and Network Video Recorder (NVR) systems
• File sync and sharing between branch offices
• Businesses wanting cost efficiency with service continuity

Why Choose Synology RS2423RP+

​

The Synology RS2423RP+ is a cost-effective RackStation delivering up to 155,000 IOPS and up to 216TB of capacity before expansion, with a redundant power supply that helps prevent downtime. It's the ideal choice for SMBs and branch offices needing a reliable, flexible, and cost-efficient storage solution.
