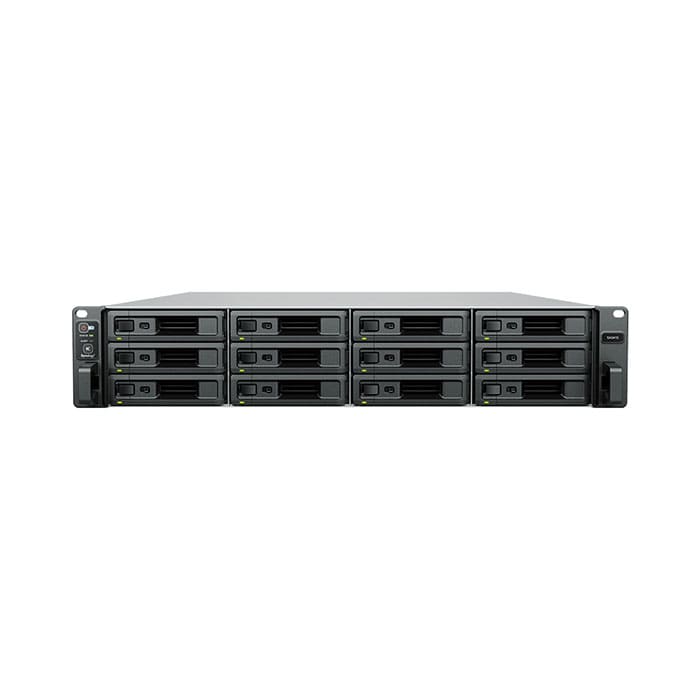

Storage NAS Synology RackStation SA3410 12-BAY (KIT-SNG-SA3410)

Storage NAS Synology RackStation SA3410 12-BAY (KIT-SNG-SA3410)

​

The Synology SA3410 (KIT-SNG-SA3410) is a 12-bay, 2U RackStation designed for large enterprises and studios that need on-demand scalable storage. It supports up to 1.7PB of capacity when fully expanded, allowing data centers and growing businesses to store large volumes of data without sacrificing speed or performance, at a more cost-effective total cost of ownership than the SA3610.

Key Features of Synology SA3410

​

12 Drive Bays, Expandable to 96 Drives with Up to 1.7PB Capacity
Supports 12 x 3.5" SAS-3/SATA III drives or 2.5" SSDs, expandable up to 96 drives with seven RX1222sas expansion units — supporting up to 1.728PB of total raw capacity.

Powered by an 8-Core Intel Xeon D-1541 Processor
Driven by an 8-core Intel Xeon D-1541 processor at 2.1 GHz (up to 2.7 GHz Turbo), with 16GB of DDR4 ECC RDIMM memory (expandable up to 128GB) for efficient handling of enterprise workloads.

Up to 6,200 MB/s Performance
Delivers sequential read speeds of up to 6,200 MB/s and write speeds of up to 3,000 MB/s, ideal for workloads requiring fast transfer of large volumes of data.

High-Speed Networking with Comprehensive Ports

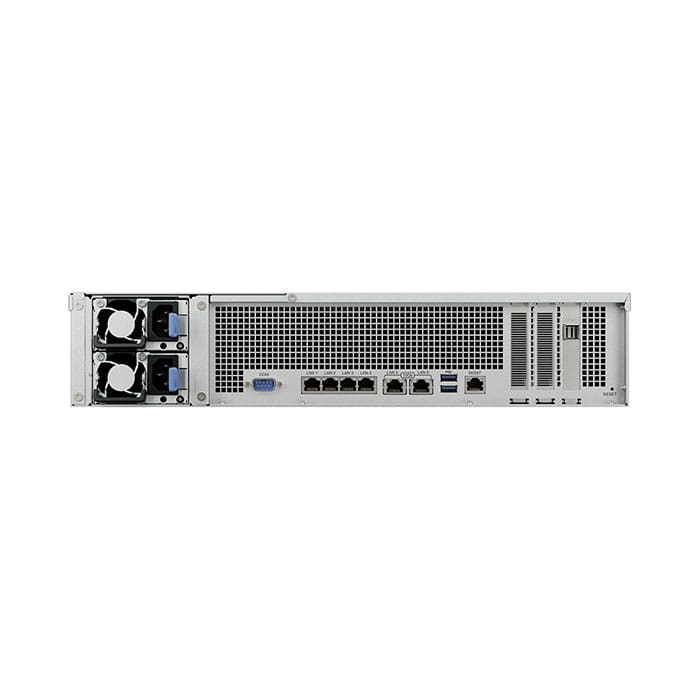

Equipped with two 10GbE ports and four Gigabit Ethernet ports, plus two USB-A 3.2 Gen 1 ports and two PCIe 3.0 x8 slots for optional 10/25/40GbE or Fibre Channel cards.

Supports Multiple RAID Types, Including RAID F1
Supports RAID 0, 1, 5, 6, 10, Basic, JBOD, and RAID F1 — designed specifically for SSDs, enhancing data protection reliability and flexibility.

High Availability with Minute-Level Failover
Two SA3410 units can be configured into a Synology High Availability (SHA) cluster, acting as active and passive servers to minimize data loss risk with minute-level failover.

Supports a Wide Range of Enterprise Workloads
Capable of backing up over 1,000 endpoints, managing up to 128 IP cameras, or providing mailboxes for up to 1,600 users.

Cooled by Four System Fans
Equipped with four 80mm cooling fans to keep the system running reliably 24/7.

Dual Redundant Power Supplies
Comes with redundant power supplies that help reduce the risk of power disruptions and single points of failure.

5-Year Limited Warranty
Backed by Synology's 5-year limited warranty, with responsive technical support and hardware replacement services.

Ideal Applications

​

• Large enterprises and data centers with growing storage needs
• Studios and businesses requiring petabyte-scale storage
• Backup systems for large numbers of endpoints
• Large-scale surveillance systems
• Enterprise email servers for large user bases
• Workloads requiring high speed with room for future expansion at a competitive cost

Why Choose Synology SA3410

​

The Synology SA3410 is an enterprise RackStation offering up to 1.7PB of scalable capacity, powered by an 8-core Intel Xeon D-1541 processor and high-speed networking. It's the ideal choice for enterprises and data centers needing a storage solution that scales on demand at a competitive cost, with the speed and reliability to support future data growth.
