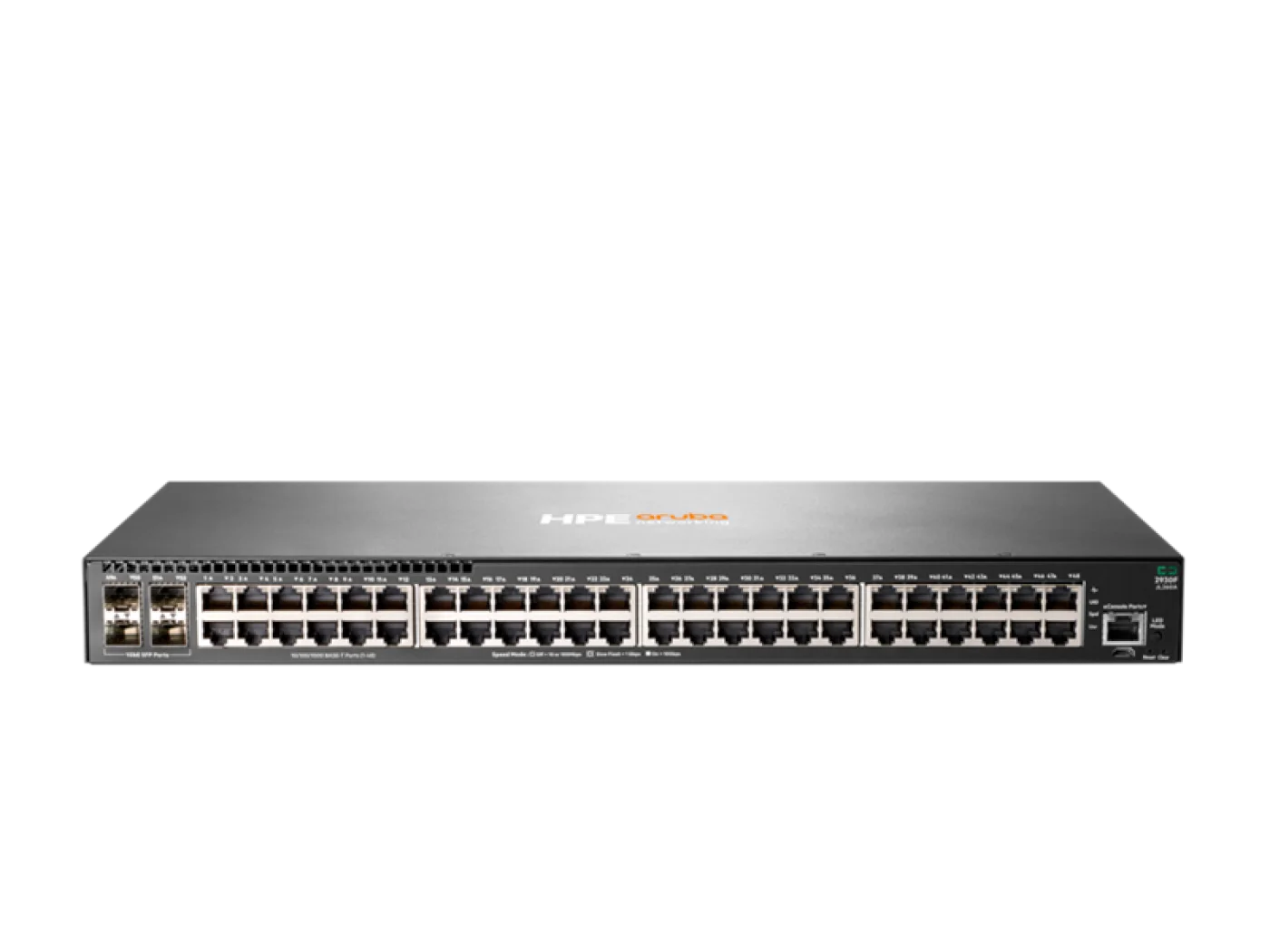

Network Switch Aruba 2930F 48G 4SFP+ (HPE-JL254A)

​

Enterprise Layer 3 Managed Switch with 48 Gigabit Ports and 4 x 10GbE SFP+ Uplinks

The Aruba 2930F 48G 4SFP+ (JL254A) is an enterprise-class Layer 3 managed switch designed for medium to large businesses, campus networks, educational institutions, healthcare facilities, and enterprise edge deployments. Featuring 48 Gigabit Ethernet ports, 4 built-in 10GbE SFP+ uplinks, advanced routing capabilities, and Aruba security technologies, it delivers high-performance and scalable network infrastructure.

Key Features of Aruba 2930F JL254A

​

48 Gigabit Ethernet Ports

Provides 48 auto-sensing 10/100/1000 Mbps Ethernet ports for connecting users, servers, IP cameras, wireless access points, and network devices.

4 x 10GbE SFP+ Uplinks

Includes four integrated 1/10GbE SFP+ uplink ports for high-speed backbone, aggregation, and data center connectivity.

Advanced Layer 3 Routing

Supports Static Routing, RIP, and Access OSPF to improve network efficiency and inter-VLAN communication.

VSF Stacking Technology

Virtual Switching Framework (VSF) allows multiple switches to operate as a single logical device for simplified management and scalability.

Dynamic Segmentation

Integrates with Aruba ClearPass to automatically enforce user, device, and application-based network policies.

Enterprise-Class Security

Supports ACLs, 802.1X authentication, MAC authentication, VLAN security, and IPv6 security features for enhanced network protection.

Flexible Management Options

Supports Aruba Central, Aruba AirWave, Web GUI, CLI, and SNMP for centralized monitoring and management.

Technical Specifications

​

• Model : JL254A
• Series : Aruba 2930F
• Product Type : Layer 3 Managed Switch
• Ports :
  • 48 × Gigabit Ethernet RJ45
  • 4 × 1/10GbE SFP+ Uplinks
• Switching Capacity :
  • 176 Gbps
• Throughput :
  • Up to 112 Mpps
• MAC Address Table :
  • 32K Entries
• Routing :
  • Static Routing
  • RIP
  • Access OSPF
• Stacking :
  • VSF
• Processor :
  • Dual-Core ARM Cortex-A9 @ 1016 MHz
• Memory :
  • 1 GB DDR3 SDRAM
  • 4 GB eMMC Flash
• Management :
  • Aruba Central
  • AirWave
  • Web GUI
  • CLI
  • SNMP
• Security :
  • ACL
  • 802.1X
  • MAC Authentication
  • Dynamic Segmentation
  • VLAN Security
• IPv6 :
  • Supported
• Form Factor :
  • 1U Rackmount
• Dimensions :
  • 44.25 × 24.63 × 4.39 cm
• Weight :
  • 3.10 kg
• Warranty :
  • Limited Lifetime Warranty

Ideal Applications

​

• Enterprise Networks
• Campus Networks
• Corporate Headquarters
• Educational Institutions
• Healthcare Facilities
• Manufacturing Environments
• Government Organizations
• Data Center Edge Deployments
• Large Surveillance Networks
• Distribution & Aggregation Layers

Why Choose Aruba 2930F JL254A

​

The Aruba 2930F JL254A combines enterprise-grade Layer 3 routing, 10GbE uplinks, advanced security, VSF stacking, and centralized management capabilities in a reliable platform. It is an ideal solution for organizations requiring scalable, secure, and high-performance network infrastructure.
