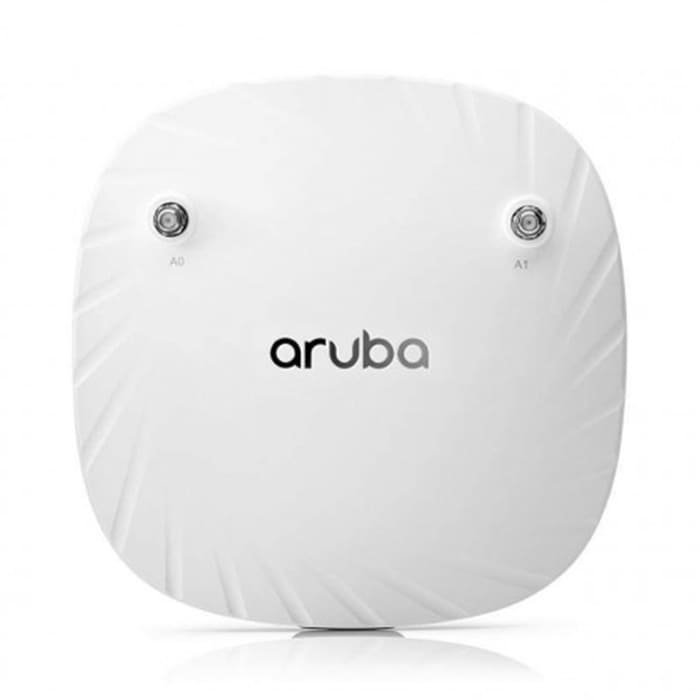

Network Access Point Aruba AP-504 (RW) (R2H22A)

​

Enterprise Wi-Fi 6 Access Point for High-Density Wireless Environments

The Aruba AP-504 (RW) (R2H22A) is an enterprise-class wireless access point from the Aruba 500 Series, designed for offices, schools, healthcare facilities, hotels, and retail environments. Supporting Wi-Fi 6 (802.11ax), MU-MIMO, and OFDMA technologies, it delivers reliable high-speed wireless connectivity while efficiently handling large numbers of users and IoT devices.

Key Features of Aruba AP-504

​

Wi-Fi 6 (802.11ax) Technology

Supports the latest Wi-Fi 6 standard, delivering improved throughput, lower latency, and enhanced performance in high-density environments.

Dual-Radio 2x2 MIMO

Features dual-radio 2x2 MIMO operation on both 2.4 GHz and 5 GHz bands with OFDMA technology for efficient wireless communications.

High User Capacity

Designed to support a large number of concurrent users and connected devices, making it ideal for enterprise and public environments.

Integrated Bluetooth 5 and Zigbee

Built-in Bluetooth Low Energy (BLE) and Zigbee radios support asset tracking, location services, and smart building applications.

Aruba ClientMatch Technology

Automatically optimizes client connections by steering devices to the most suitable access point and radio band for improved performance.

Flexible Management Options

Supports Aruba Central cloud management, Aruba Mobility Controllers, and Instant Mode deployments.

Enterprise-Grade Security

Includes WPA3, Enhanced Open, Secure Boot, and Trusted Platform Module (TPM) technologies to protect enterprise wireless networks.

Technical Specifications

​

• Model : R2H22A
• Product Name : Aruba AP-504 (RW)
• Product Series : Aruba 500 Series
• Product Type : Indoor Wireless Access Point
• Wireless Standard :
  • IEEE 802.11ax (Wi-Fi 6)
  • Backward Compatible with IEEE 802.11a/b/g/n/ac
• Radio Configuration :
  • Dual Radio 2x2 MIMO
• Frequency Bands :
  • 2.4 GHz
  • 5 GHz
• Maximum Data Rate :
  • Up to 1.77 Gbps
• Ethernet Port :
  • 1 × Gigabit Ethernet RJ45
• USB :
  • 1 × USB 2.0
• Bluetooth :
  • Bluetooth 5.0 BLE
• Zigbee :
  • Integrated Zigbee Radio
• Security :
  • WPA2
  • WPA3
  • Enhanced Open
  • TPM
• Power Options :
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
• Mounting :
  • Ceiling Mount
  • Wall Mount
• Deployment :
  • Indoor
• Dimensions :
  • 20 × 20 × 4.6 cm
• Weight :
  • 0.65 kg
• Warranty :
  • Limited Lifetime Warranty

Ideal Applications

​

• Enterprise Offices
• Educational Institutions
• Hospitals
• Hotels and Resorts
• Retail Stores
• Co-Working Spaces
• Smart Buildings
• High-Density Wi-Fi Deployments

Why Choose Aruba AP-504

​

The Aruba AP-504 delivers enterprise-grade Wi-Fi 6 performance, advanced security, intelligent client optimization, and flexible deployment options. With support for cloud management and integrated IoT capabilities, it is an excellent choice for organizations seeking a secure, scalable, and future-ready wireless networking solution.
